Overview
The Mechanical Briquetting Press BriqTech Model: BT-080-900Max is designed for the production of biomass pellets, providing efficiency and reliability in operation.
The mechanical briquetting press operates based on the accumulation and release of kinetic energy through a flywheel. This mechanism allows for the compression of material in a special chamber, turning it into dense and uniform briquettes. Due to the high force generated in a short amount of time, this type of press is ideal for large production volumes and ensures efficient energy consumption.
The Mechanical Briquetting Press produces briquettes from sawdust, Series "BriqTech" Model: BT-080-900Max. The principle of the press with a mechanical system powered by a piston - the raw material is pressed without adhesives or binders, forming briquettes (solid fuel) with a density of up to 1450 kg/m3. The briquettes are used in thermal power plants, fireplaces, stoves, wood-fired ovens, offering higher yield and calorific power than firewood and are 100% environmentally friendly!
Technical Characteristics of the Briquetting Press:
Productivity up to: 900 – 1200 kg/hour depending on the raw material
Briquette diameter: 80-85 mm sawdust
Briquette length: 100-300 mm
Main motor of the briquette press - 55 kW
Feeding motor - 3 kW
dosing motor – 3 kW
Total installed power - 70 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5%, frequency 50 Hz
Length: 4780 mm Width: 1670 mm Height: 3245 mm
Weight of the briquetting machine: 5500 kg
Raw material moisture content: 12-14-16%
Raw material size: 3 - 8 mm
Briquette density when exiting the mechanical briquetting press up to 1100 - 1450 kg/m3
Type of raw materials: wood waste: sawdust, shavings, chips, MDF and particleboard dust, wood sawdust; waste from plant residues: cereal straw, alfalfa, rapeseed, soy, sunflower seed hulls, corn stalks, walnut shell sawdust, and other biomass residues containing lignin; other wastes from: peat, RDF
Technology used from 2025

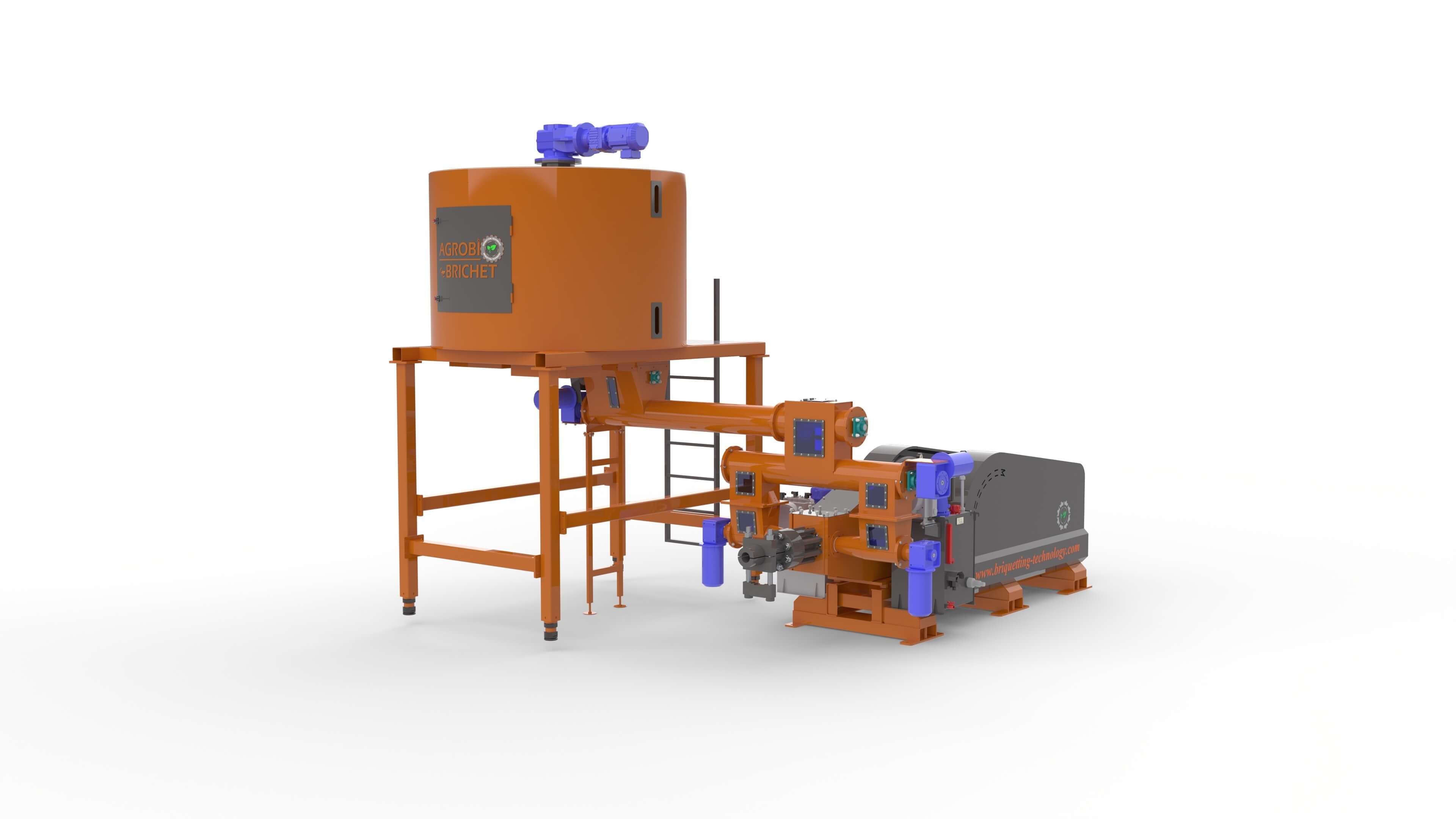

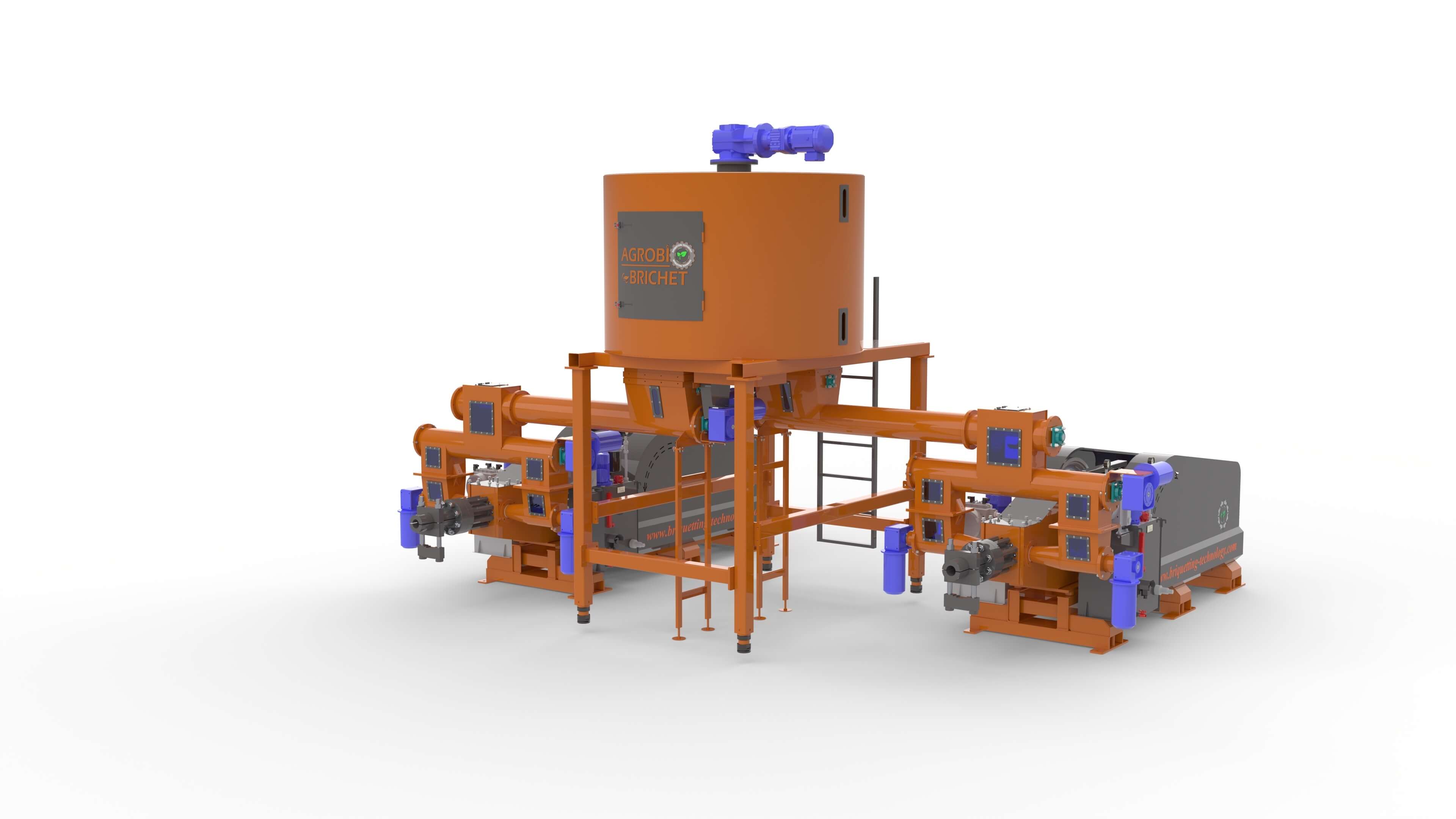

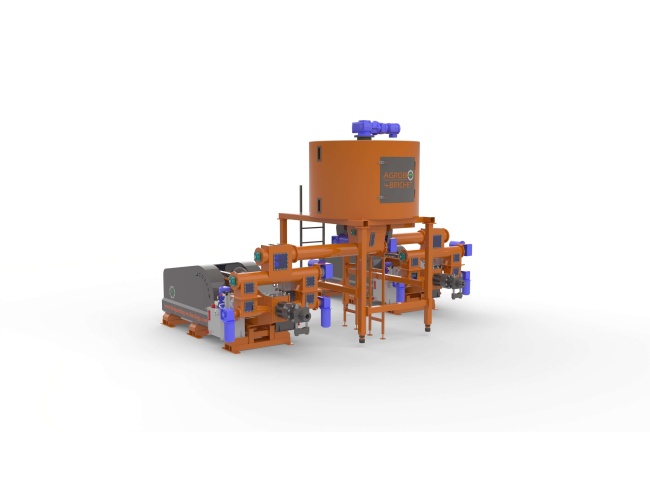

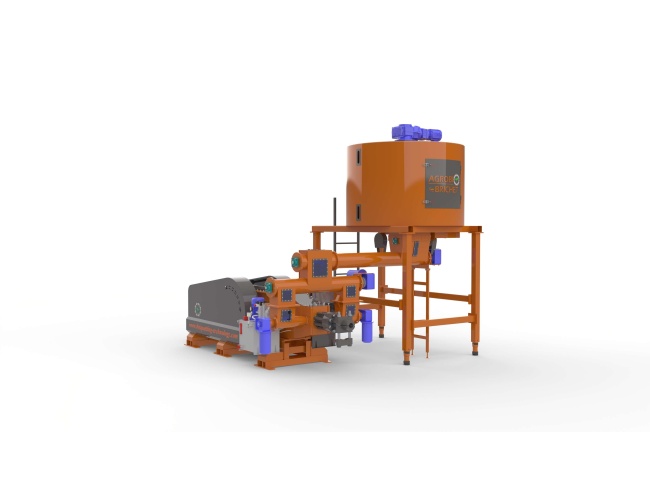

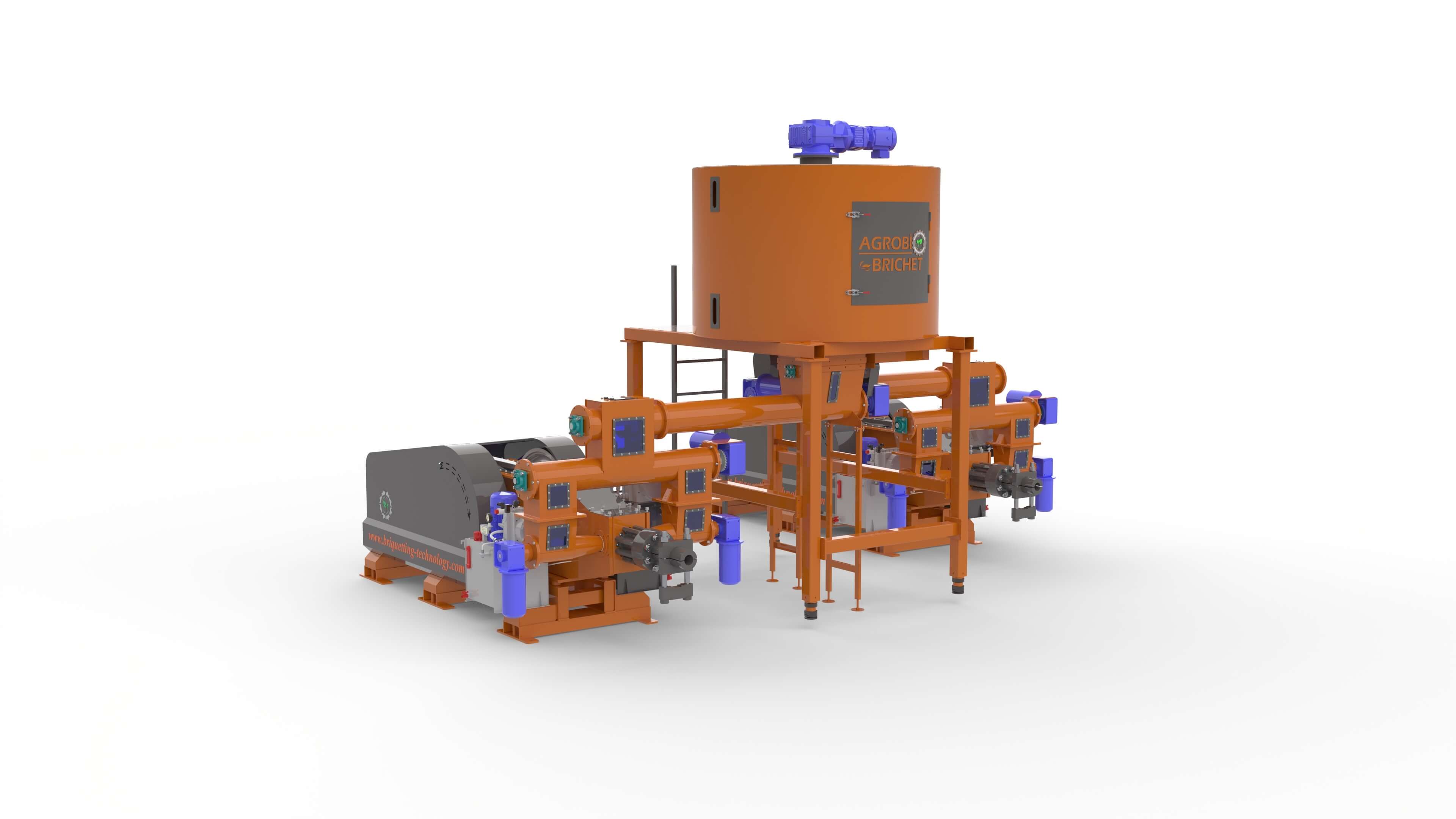

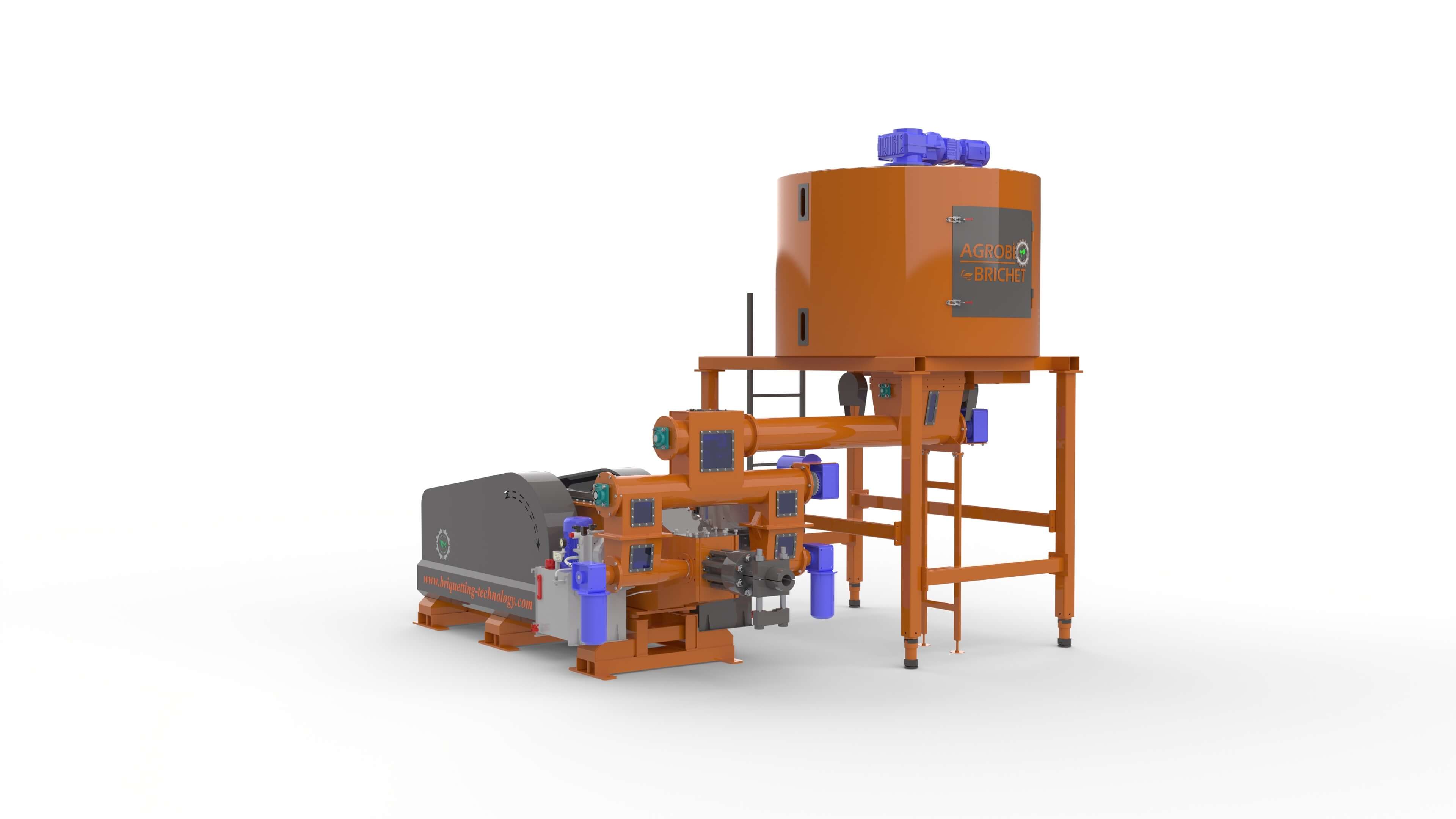

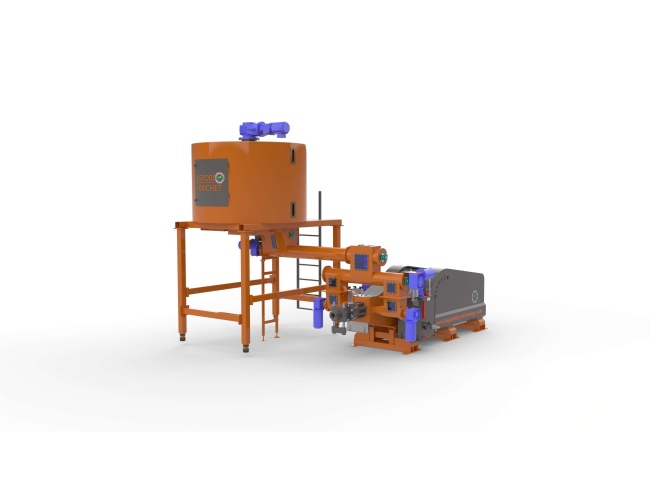

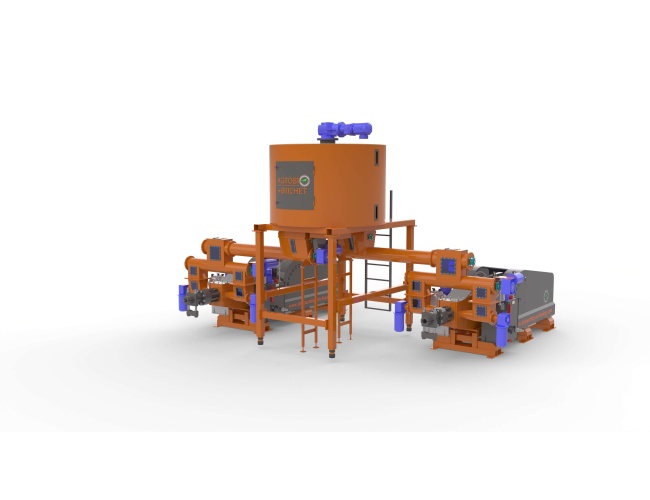

The sawdust briquetting press consists of:
Briquetting Machine BT-080-900Max
Oil cooling system with radiator and fan and oil heating
Cooling system for the briquette forming head that will maintain a constant temperature
Preheating system for the conical bushing and heating of the conical bushing during operation
Automated hydraulic tightening at the briquette forming head
Briquette cooling line 15 meters
Hopper for homogenizing dry raw material of 3 cubic meters
Conveying screw for transporting raw material from the hopper to the mechanical briquette press
Electric control panel and command, inverter, with a three-phase cable of 10 meters
Optional accessories for the briquetting press BriqTech - briquette machine:
Automation: Heating -> Automatic start mode -> Automatic operation mode
Dust collector (raw material) under the briquette forming head
Consumables set (bushing, piston, conical bushing) model 2025 - special steel, each raw material has a different set
Overload level sensor in the homogenizing hopper
Hopper for homogenizing raw material of 5 cubic meters
Automated briquette cutter after length, Briquette - tablet cutter
Briquette wrapping semi-automated in shrink film through a tunnel
Reactive power compensation panel with capacitor banks in 6 steps, high energy efficiency, cos φ 0.99
Conclusion
The Mechanical Briquetting Press BriqTech Model: BT-080-900Max represents a practical solution for valorizing biomass into eco-friendly fuel, with optimized efficiency and costs.
