Overview

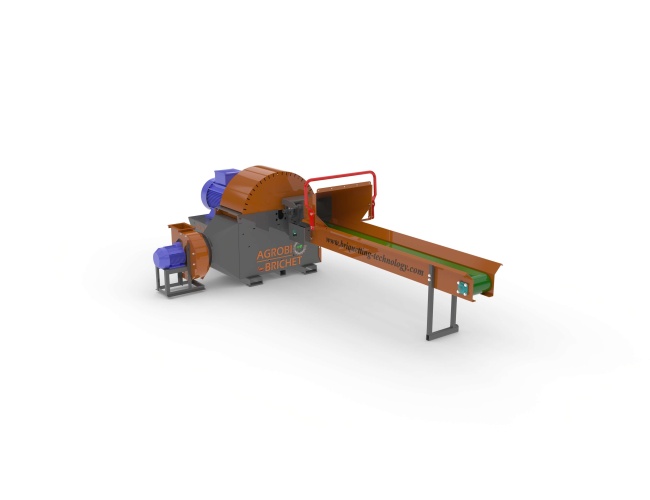

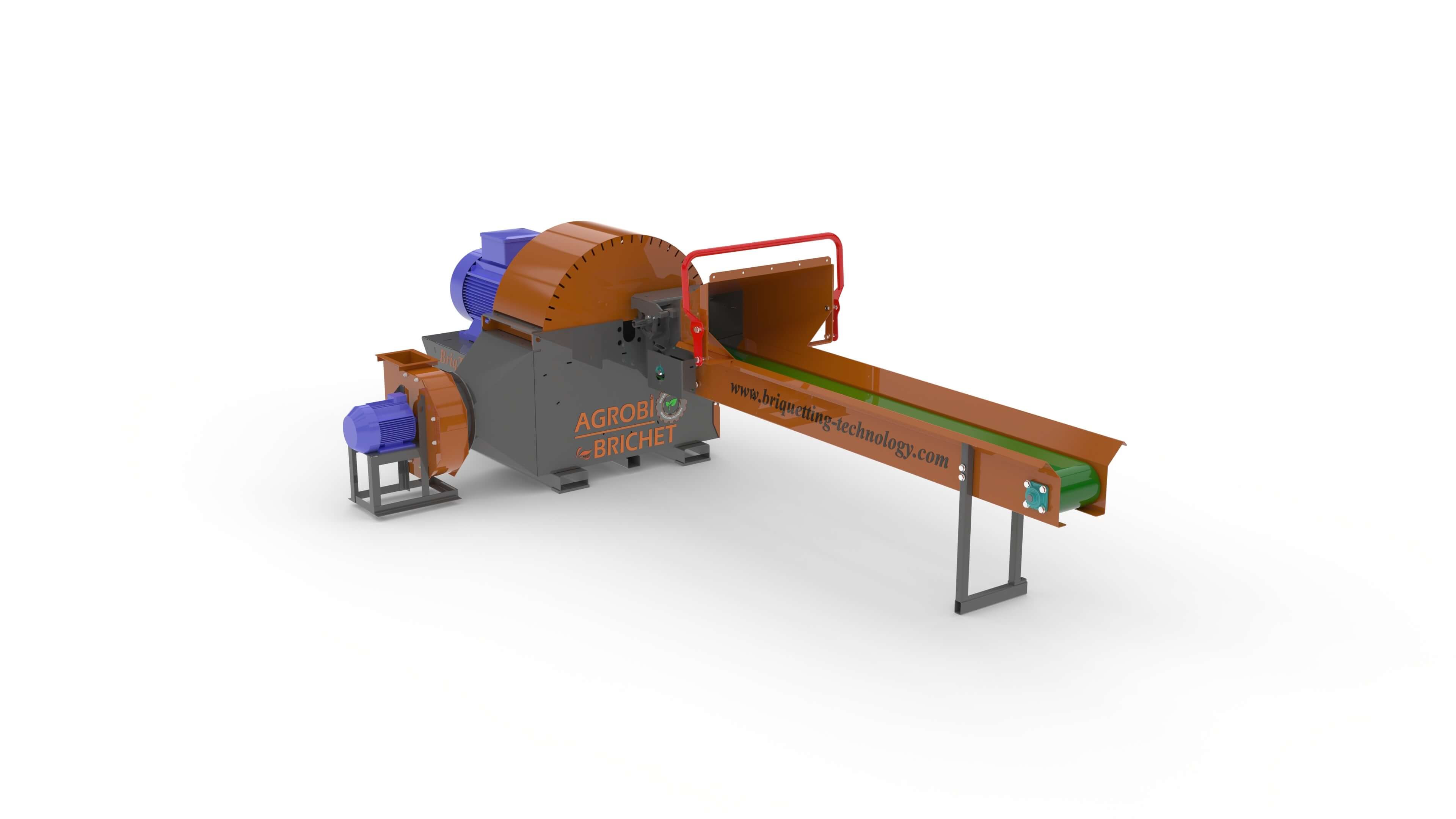

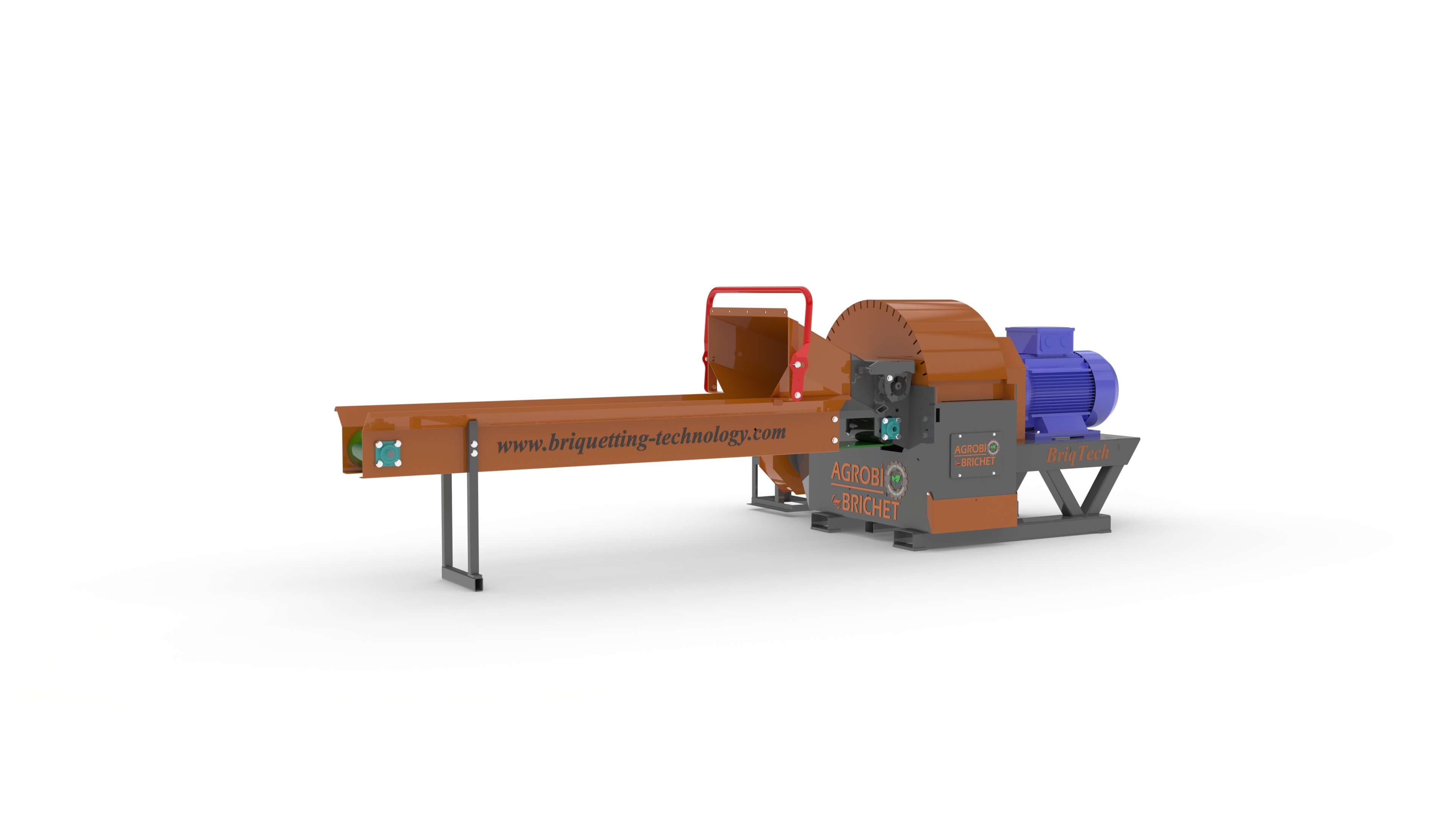

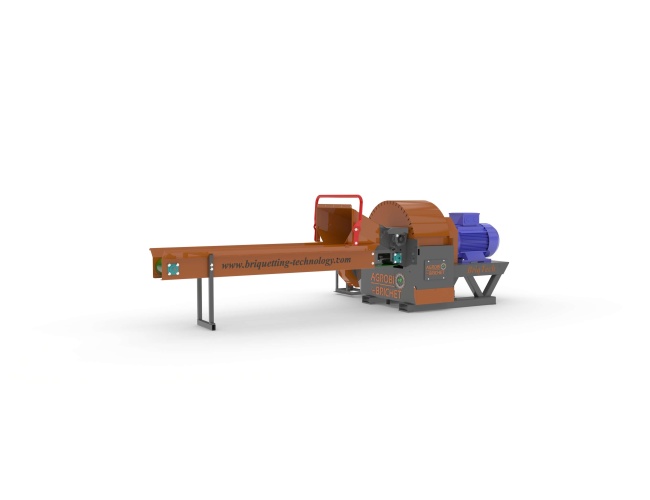

Complex branch chipper RK-2.1 is designed for the production of biomass pellets, offering efficiency and reliability in operation.
Complex branch chipper productivity RK-2.1 wood waste 500-1200 kg/hour
Feeding opening 2 meters with feeding belt
Technical specifications:
Productivity up to 500-1200 kg/hour depending on the raw material
Raw materials: branches, brushwood, wood waste, forest residues
Branch diameter up to 220 mm; minimum length 100 mm
Raw material moisture max 60%
Shredded raw material size at output 2 mm - 5 mm, depending on the sieve
Electric motor – 55 kW 1000 rpm
Hydraulic system:
Feeding belt length 2 meters
The loading mouth is equipped with two retractable roller blades: width 230 mm x 280 mm
The rollers have a separate hydraulic motor and anti-stress
The system is equipped with an oil flow regulator with pressure compensator, which adjusts the raw material feeding speed
Cutting disc:
Knives 3 pcs.; counter-knife 1 pc.
Diameter 800 mm, thickness 40 mm
Rotations 1000 rpm
Crushing chamber:
Hammers 84 pcs.
Sieve (minimum hole diameter of 5mm) 1 pc.
Counter-knives 22 pcs.
Automation:
Electric control panel with automatic regulator
Raw material discharge:
Fan, tubing, cyclone: 7.5 kW 3000 rpm
Three-phase current - 400V, coil voltage 24V/230V within limits of +/- 5%, frequency 50 Hz
Total installed power - 55 kW
Technology used from 2025
Dimensions: Length 2450 mm Height 1400 mm Width 1300 mm
Weight: 1400 kg
Complex branch chipper RK-2.1 consists of:
-Complex branch chipper RK-2.1
-Feeding belt chipper
-Fan, tubing, cyclone
-Control and electric command panel, three-phase cable of 10 meters
Conclusion
Complex branch chipper RK-2.1 represents a practical solution for utilizing biomass into eco-friendly fuel, with optimized efficiency and costs.
