Overview
Bale Straw Chopper CGS-1F is designed for biomass pellet production, offering efficiency and reliability in operation.

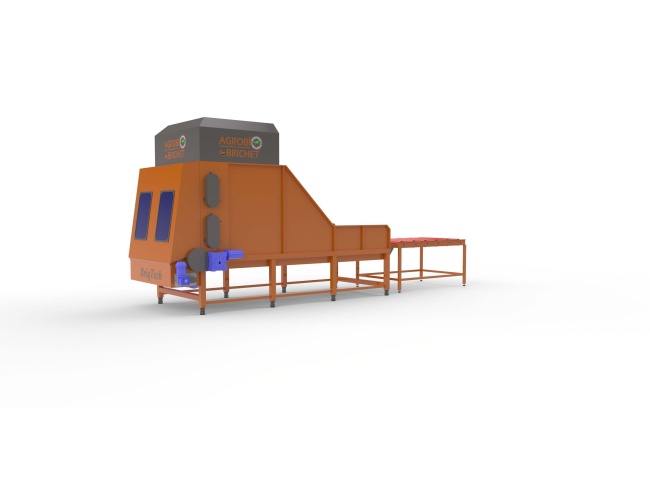

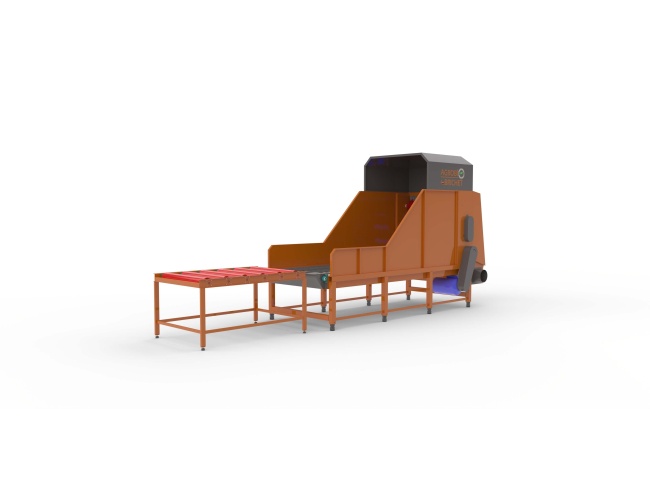

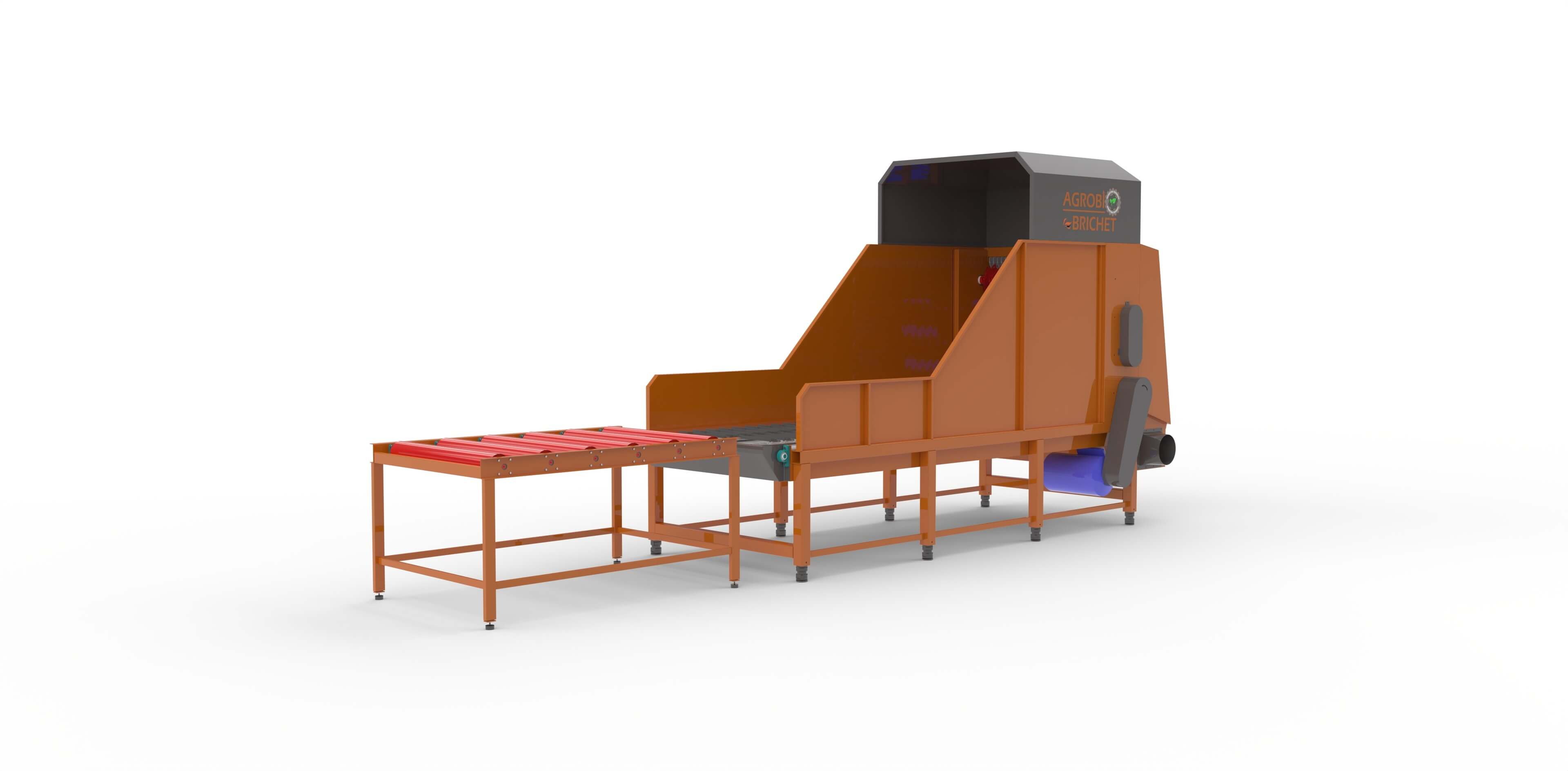

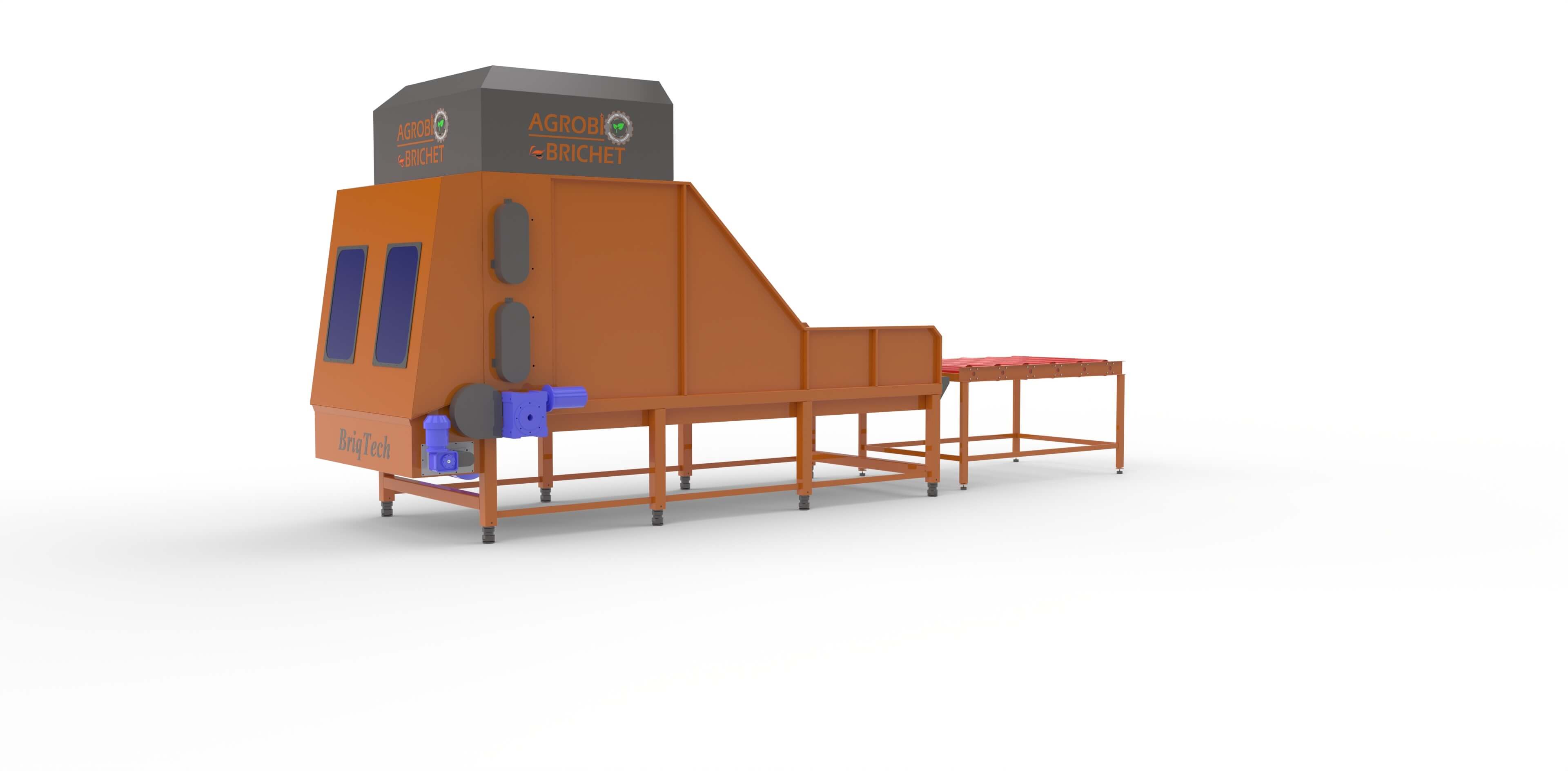

Complex Bale Straw Chopper CGS-1F
Technical specifications:
Productivity up to 600-1500 kg/hour depending on raw material
Maximum diameter of straw bales 1.8 meters
Bales from straw cylindrical, rectangular
Raw material moisture max 25%
Number of blades in straw chopper: 361 pcs
Size of chopped raw material at output 10 - 15 cm, depending on the sieve
Main chopper motor 30 kW
Conveyor motor, chopper feed belt 2-3 kW
Reducer motor for forced chopped material removal 1.1-1.5 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5%, frequency 50 Hz
Total installed power - 35 kW
Type of raw material: straw, alfalfa, rapeseed, corn stalks, etc.
Technology used since 2025
Length 6000mm Width 2060mm Height 2055mm
Weight 2500kg
Bale Chopper CGS-1F consists of:
-Bale Straw Chopper CGS-1F
-Control and electrical panel, inverter, three-phase cable 10 meters
Optional accessories for bale straw chopper CGS-1F:
Hammer mill
Baghouse filter
Bunker overload sensors with automated stop and start
Bale straw chopper model: CGS-1F is specifically designed for use in crushing and shredding straw or other plant residues.
Operating principle: crushing straw bales, both cylindrical and rectangular, and shredding the raw material to 10-15 cm.
Conclusion
Bale Straw Chopper CGS-1F represents a practical solution for utilizing biomass into eco-friendly fuel, with optimized efficiency and costs.
