Overview
Bale Shredder Complex CGS-1 is designed for the production of biomass pellets, offering efficiency and reliability in operation.
Bale Shredder Complex CGS-1 + Hammer Mill model: H-119/7SN
Technical features:
Throughput up to 600-1500 kg/hour depending on the raw material
Maximum diameter of straw bales 1.8 meters
Straw bales are cylindrical or rectangular
Bale density up to 120 kg/m.cub
Moisture content of the raw material max 25%
Number of blades in the straw shredder 361 pieces
Number of blades in the hammer mill 14 pieces
Number of hammers in the mill 60 pieces
Output size of shredded raw material 3 mm - 10 mm, depending on the sieve
Main shredder motor 30 kW
Conveyor motor, shredder feed belt 2 - 3 kW
Reducer motor for forced output of shredded material 1.1-1.5 kW
Main hammer mill motor 45 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5%, frequency 50 Hz
Total installed power - 70-80 kW
Type of raw material: wheat straw, alfalfa, rapeseed, soybean, etc.
Technology used from 2025
Length 7000mm Width 2060mm Height 2055mm
Weight 2500kg
The Bale Shredder Complex CGS-1 consists of:
- Straw bale shredder CGS-1
- Hammer mill model: H-119/7SN
- Control and electric command panel, inverter, three-phase cable of 10 meters
Optional accessories for CGS-1 straw bale shredder:
Soft Starter, Frequency Converter, Automation
Bag filter
Bunker (silo) overload sensor with acoustic and visual alarm
Max bunker overload sensors with automated stop and start
The Straw Bale Shredder Complex model: CGS-1 is specially designed for use in the production lines of briquettes and straw pellets or other plant waste.
Operating principle: Shredder model CGS-1 Stage I: crushing bales of straw, both cylindrical and rectangular, Stage II: fine shredding (hammer mill) model: H-119/7SN grinds the raw material to 3-10 mm. The final fraction is fully prepared for briquette and pellet manufacturing or feed, bedding for animals.

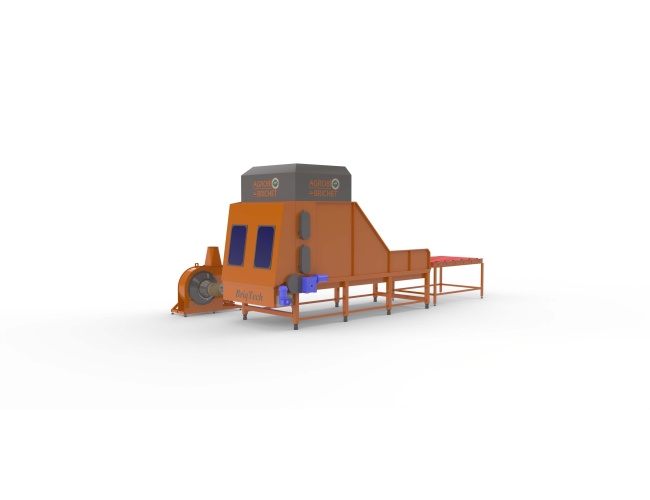

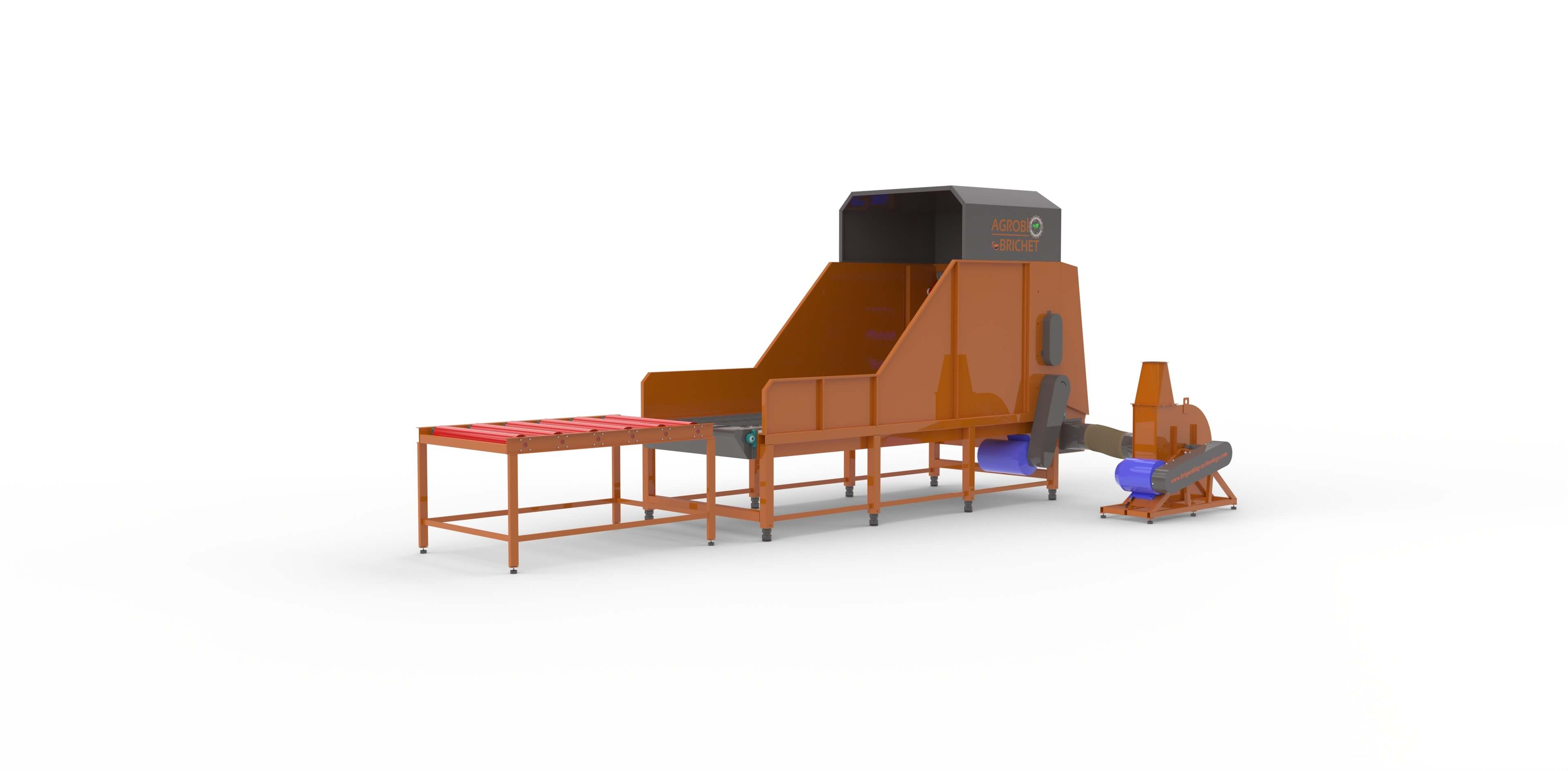

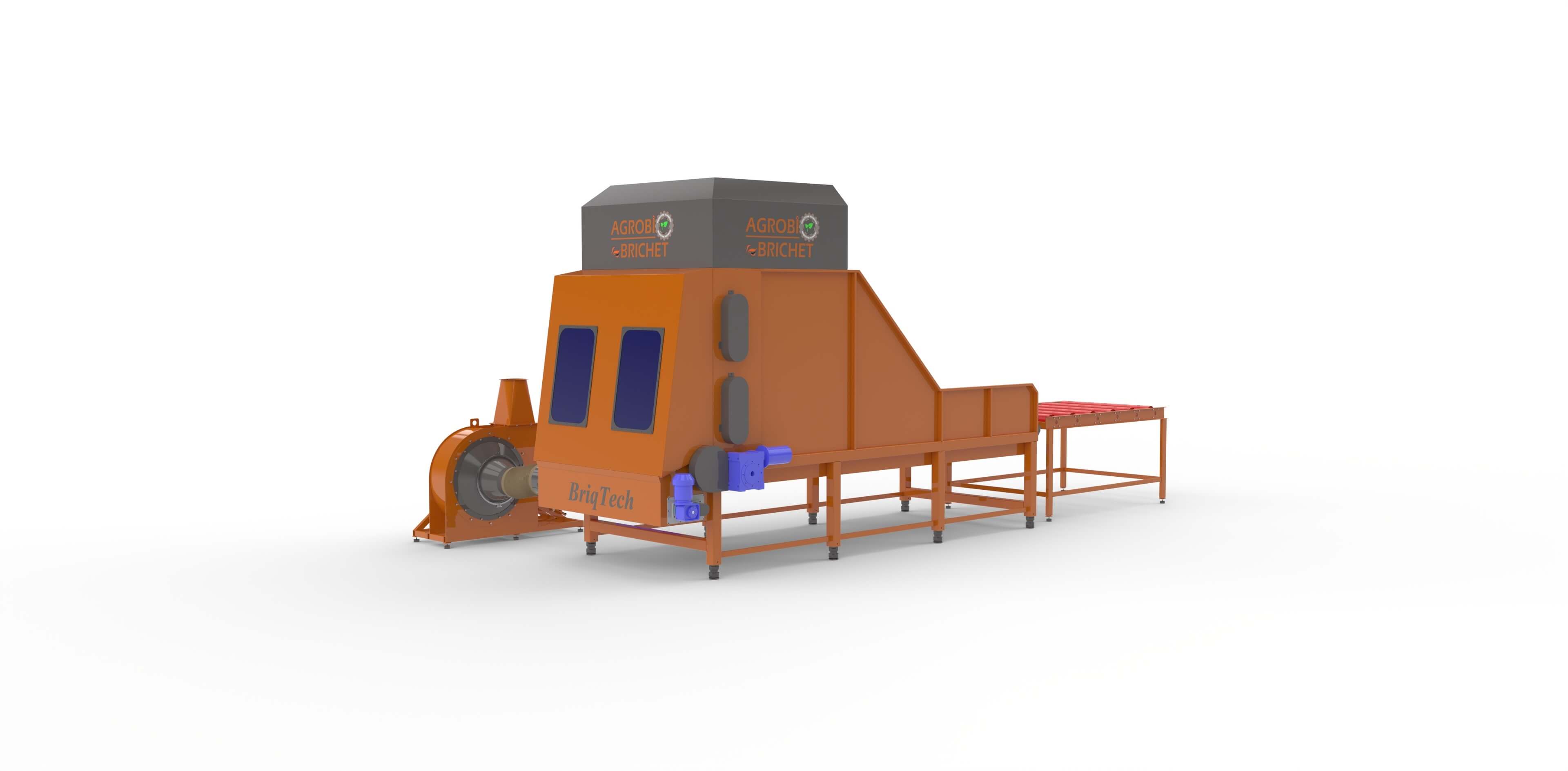

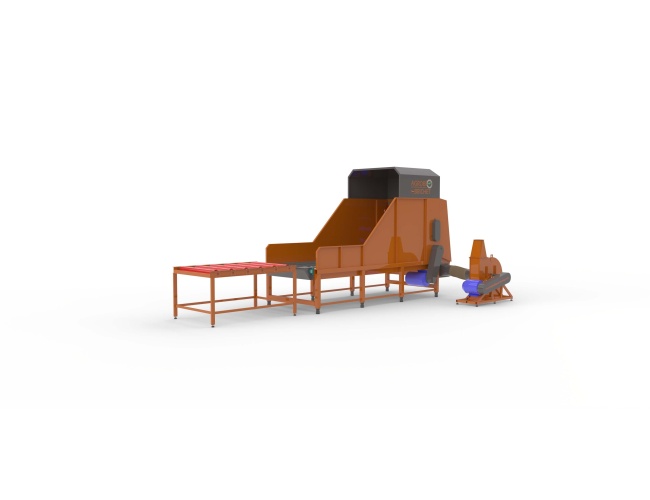

Straw bale shredder CGS-1 with Hammer Mill
Conclusion
Bale Shredder Complex CGS-1 represents a practical solution for utilizing biomass into ecological fuel, with optimized efficiency and costs.
