Overview

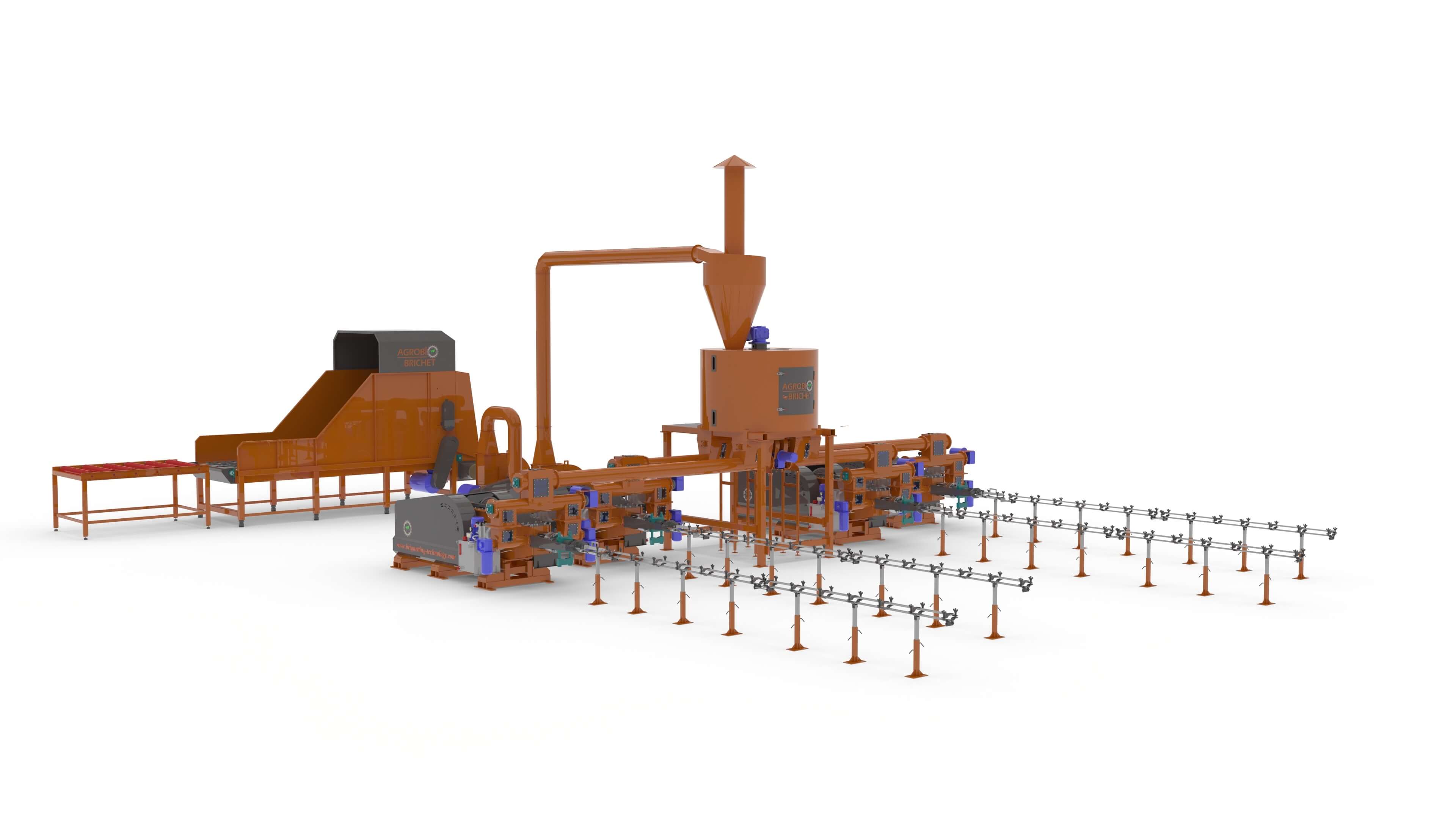

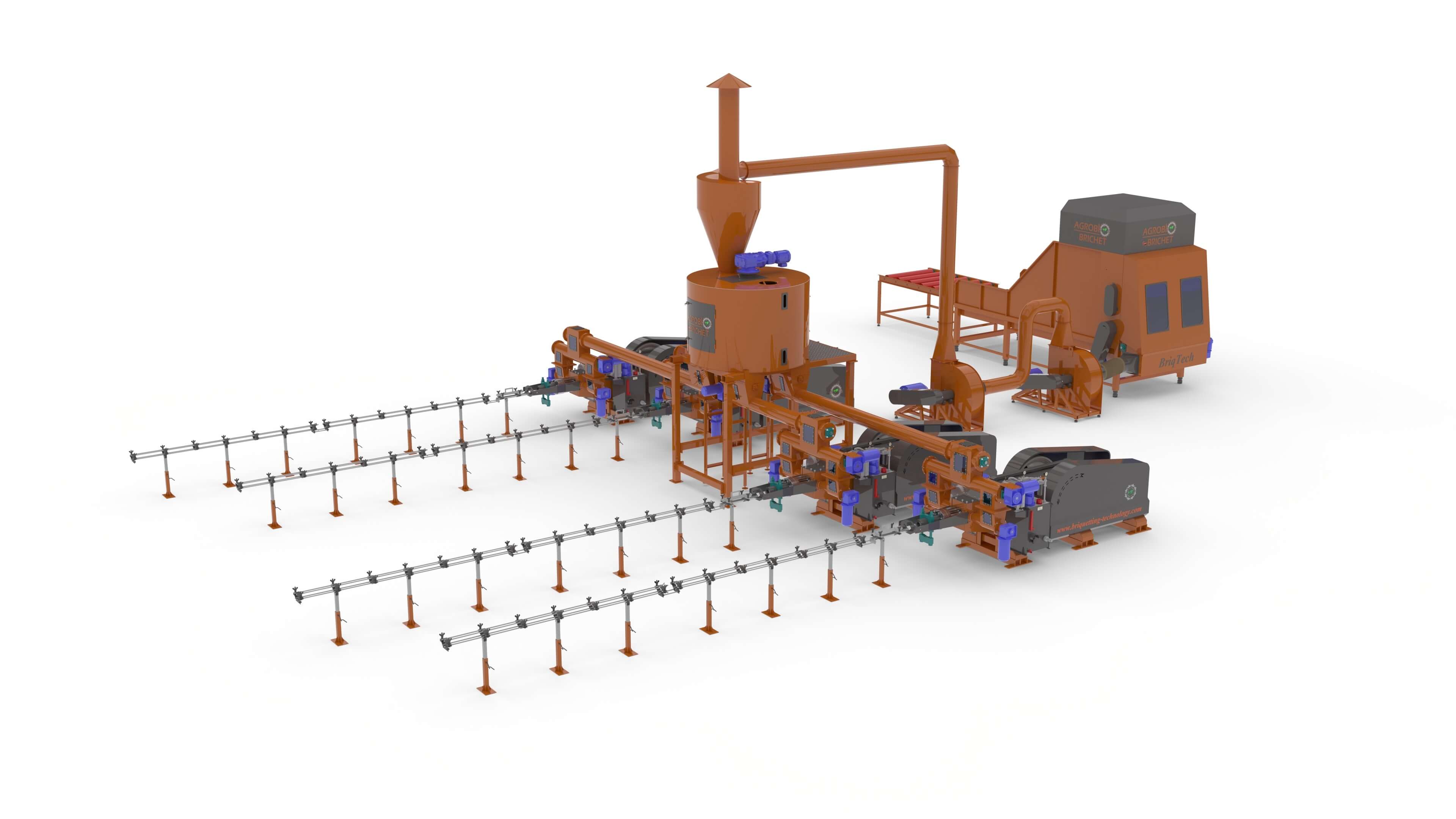

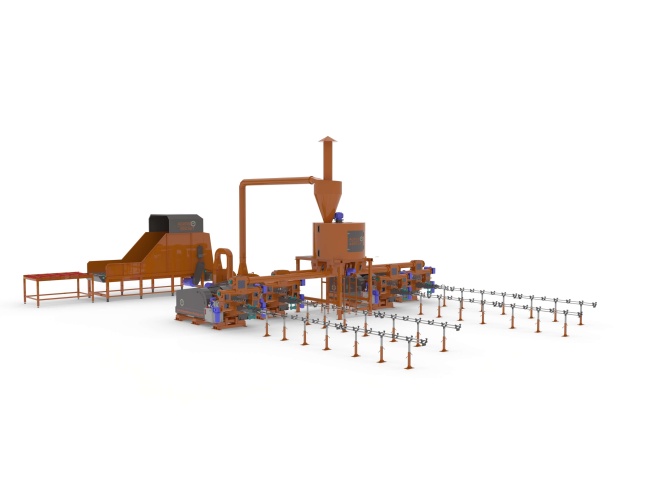

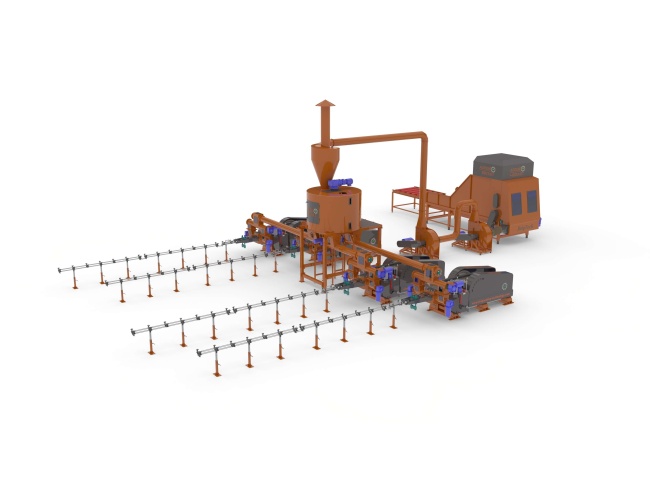

Rapeseed-straw briquetting line, 2400-3200 kg/hour is designed for biomass pellet production, providing efficiency and reliability in operation.
Complete Plant for Briquetting from Vegetable Residues – up to 3200 kg/hour
High production for eco-friendly straw and rapeseed briquettes
Briquetting Line Components
- Briquetting press BriqTech BT-070-800Max – 55 kW × 4 units.
- Raw material homogenization hopper – capacity 5 m³
- Aerodynamic straw dryer DAD-0.6-1.2Max – 20–30 kW (optional) × 2 units.
- Bale shredding complex CGS-2 with feeding conveyor – 125 kW
Technical Details and Benefits
- Efficient electric consumption – only 50% of the installed total power
- 24-month warranty from commissioning
- Included services: line automation, humidification, spare parts, operator training
- Optional accessories: Automated briquette cutter, overload sensor for hopper
Energy Efficiency
Reactive energy compensation panel with capacitor banks in 6 stages – high energy efficiency, cos φ 0.99.
Final Use
The produced briquettes are ideal for thermal power plants, fireplaces, stoves, and wood-burning ovens, providing superior calorific power compared to firewood. 100% eco-friendly.
The grounding of the machinery or the complete briquetting line must be executed in accordance with the provisions of existing electrical safety norms and technical standards.
The grounding system must be dimensioned and checked to ensure a dispersion resistance according to the requirements of applicable regulations (e.g. I7/2011, SR EN 60204-1), guaranteeing personnel protection and safe operation of the equipment.
Conclusion
Rapeseed-straw briquetting line, 2400-3200 kg/hour represents a practical solution for valorizing biomass into eco-friendly fuel, with optimized efficiency and costs.
