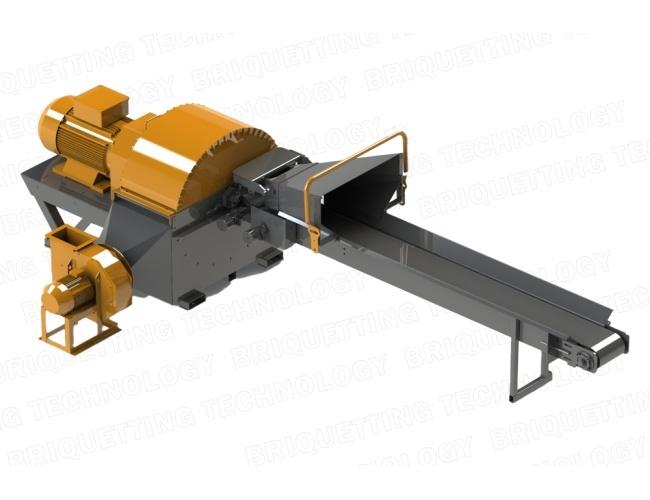

The RK-2.1 complex branch shredder is a wood waste shredder with a productivity range of 500-1200 kg/hour. It has a feed inlet of 2 meters with a feeding belt. Here are the technical specifications:
- Productivity: up to 500-1200 kg/hour depending on the raw material
- Raw material: branches, twigs, wood waste, forest residues
- Branch diameter: up to 220 mm; minimum length: 100 mm
- Maximum moisture content of the raw material: 60%
- Output material size: 2 mm - 5 mm, depending on the sieve
- Electric motor: 55 kW, 1000 rpm
- Hydraulic system:
- 2-meter feeding belt
- The loading inlet is equipped with two retractable toothed rollers: width 230 mm x 280 mm
- The rollers have a separate hydraulic motor and anti-stress feature
- The system is equipped with an oil flow regulator with pressure compensator, which adjusts the feeding speed of the raw material
- Cutting disc:
- 3 cutting knives; 1 counter knife
- Diameter: 800 mm; thickness: 40 mm
- Rotation: 1000 rpm
- Shredding chamber:
- 84 hammers
- Sieve (minimum hole diameter: 5 mm): 1 piece
- Counter knives: 22 pieces
- Automation:
- Electric control panel with automatic regulator
- Raw material discharge:
- Fan, ducting, cyclone: 7.5 kW, 3000 rpm
- Three-phase power - 400V, coil voltage 24V/230V within +/- 5% limits, frequency: 50 Hz
- Total installed power: 55 kW
- Technology used since 2022
- Dimensions: Length 2450 mm, Height 1400 mm, Width 1300 mm
- Weight: 1400 kg
The RK-2.1 complex branch shredder includes:
- RK-2.1 branch shredder complex
- Branch feeding belt
- Fan, ducting, cyclone
- Electric control and command panel, 10-meter three-phase cable.
