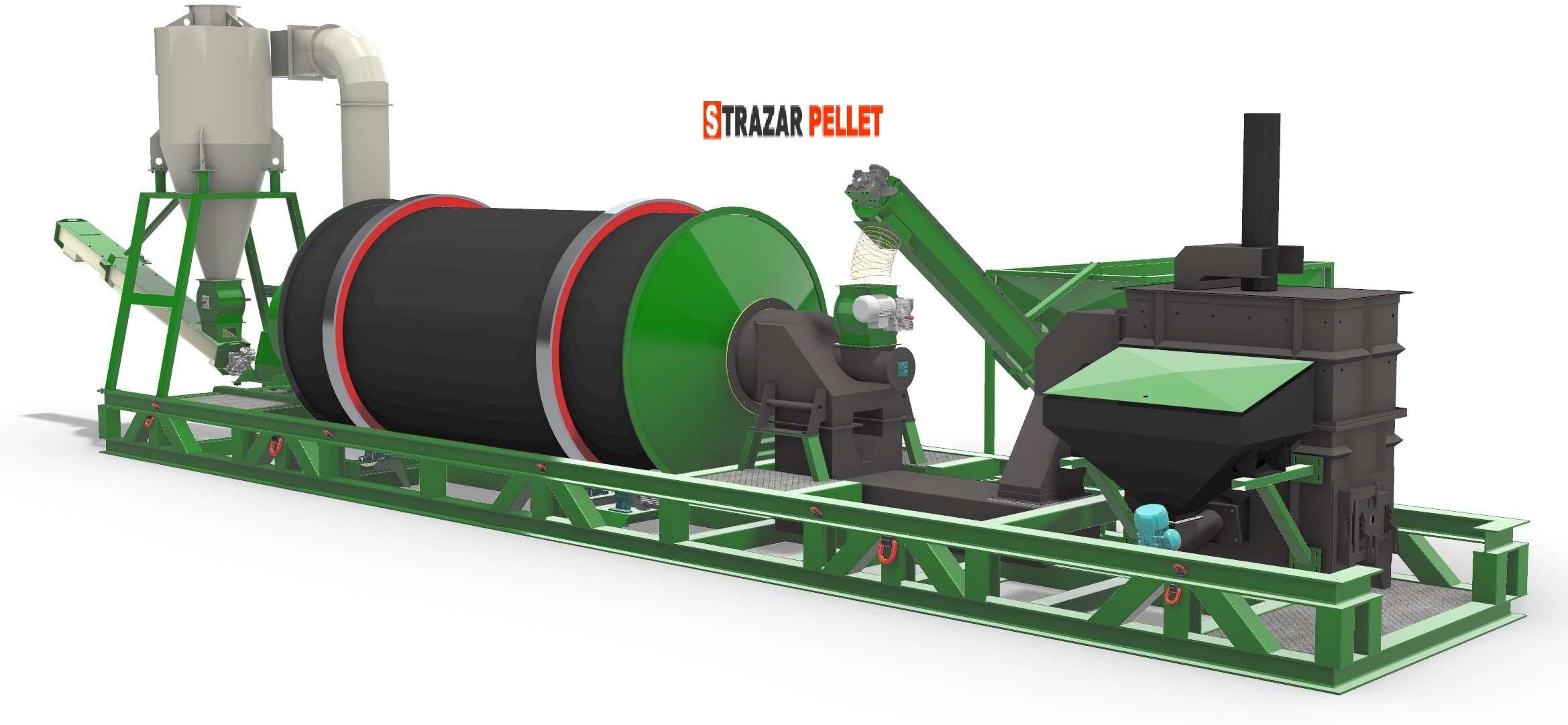

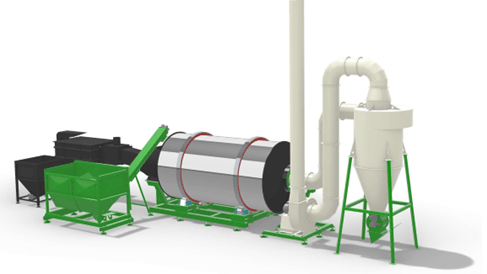

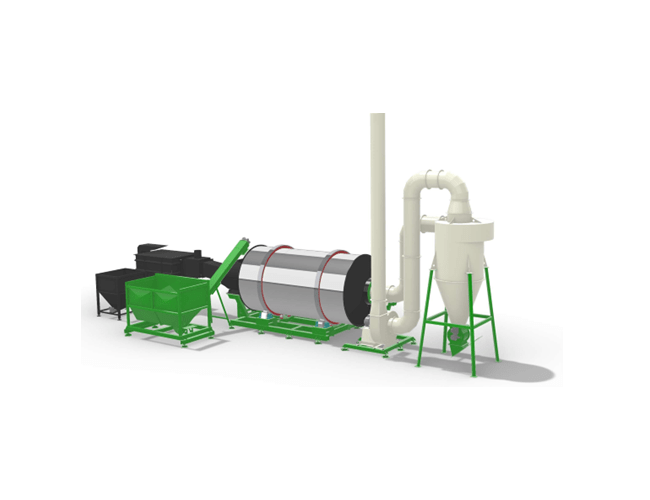

Rotary dryer SPB30-AGRO used for drying grains or production line for pellets or briquettes from rapeseed and straw
Technical specifications:
Grain or straw drying productivity up to: 15000 kg/h depending on the raw material
Raw material moisture at input: up to 24%
Raw material moisture at output: 14%
Heat generator: 1.5 MW
Total installed power: 63 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: mm Width: mm Height: mm
Weight: approximately 10000 kg
Dimensions and level of equipment depending on the hall and requirements
Technology used since 2023
Working principle of the dryer:
1. Heat generator - steel and refractory construction resistant to high temperatures
2. Raw material feeding tank Volume - 1.6 - 3 m³ with dosing screw into the dryer

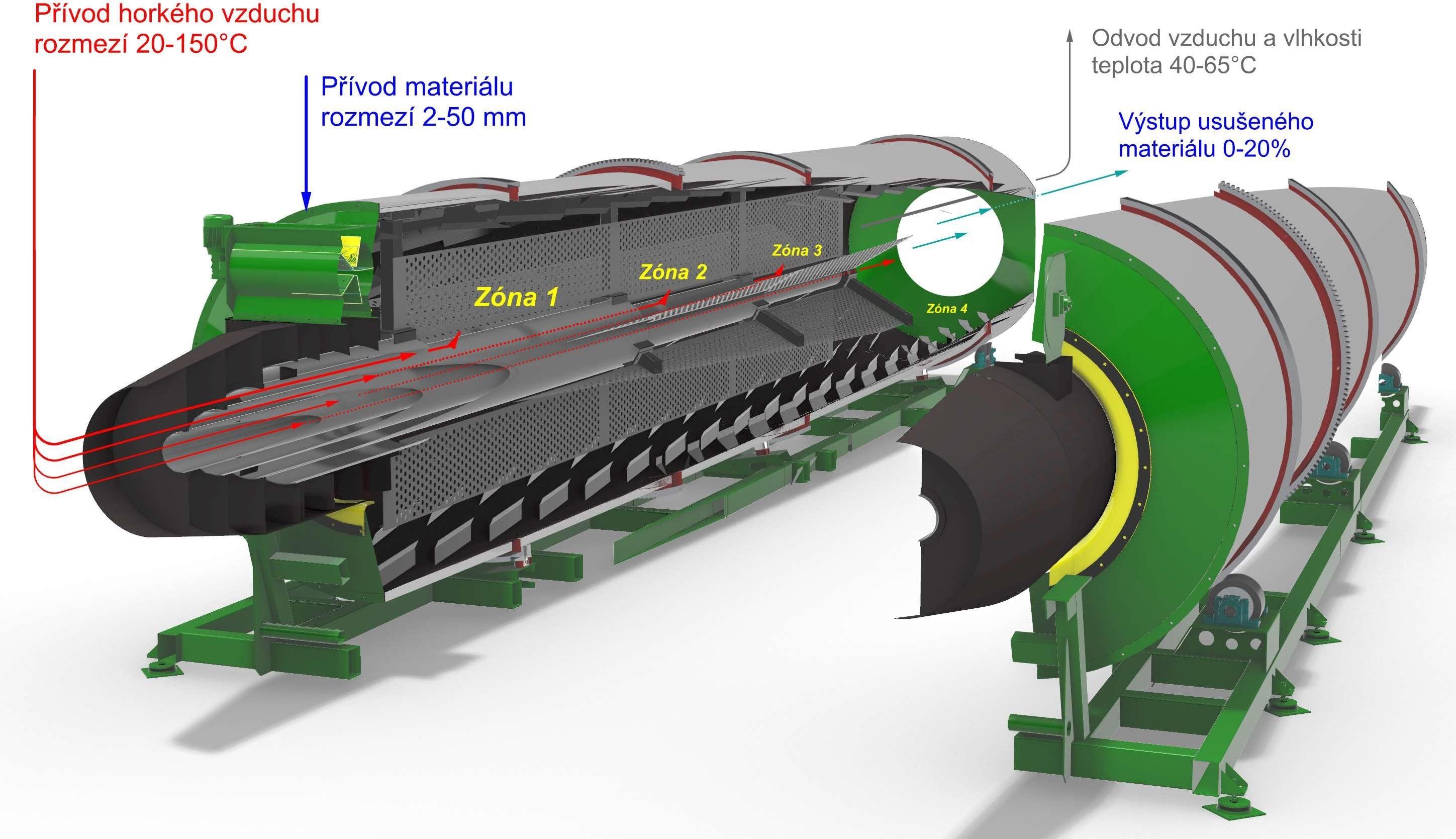

3. Rotary tube with a drying chamber
4. Fan, Cyclone with rotary valve with free fall
5. Control panel and automated program operation through Siemens LCD based on the raw material moisture

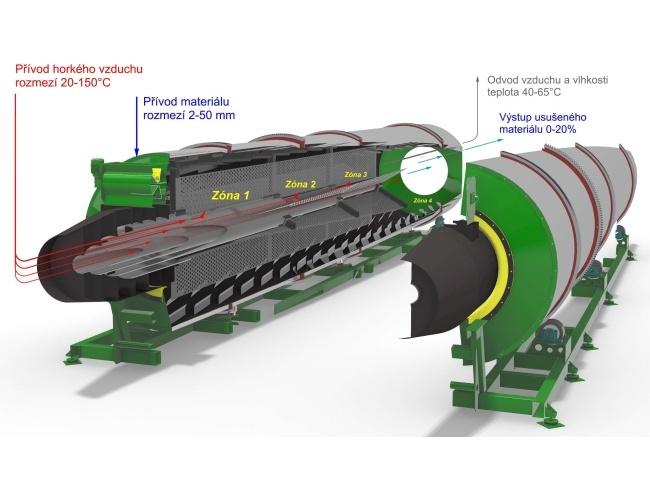

Drying process: wet raw material passes through the rotary tube consisting of a drying chamber with paddles, where it loses its moisture by mixing. Then, the dried raw material falls from the cyclone with a rotary valve, and the moist air is ventilated into the atmosphere by the fan.
Optional accessories for SPB30-AGRO rotary dryer:
Remote control internet connection
Inline moisture sensors at input and output

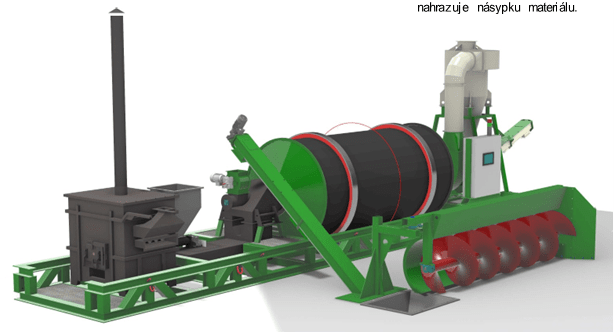

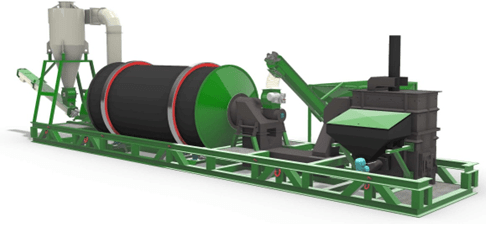

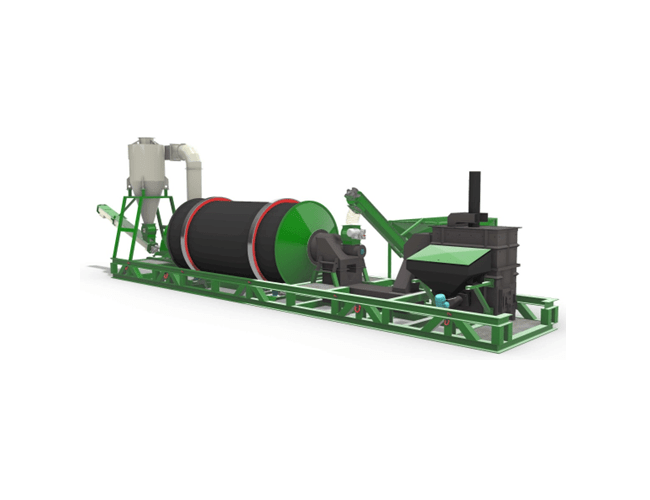

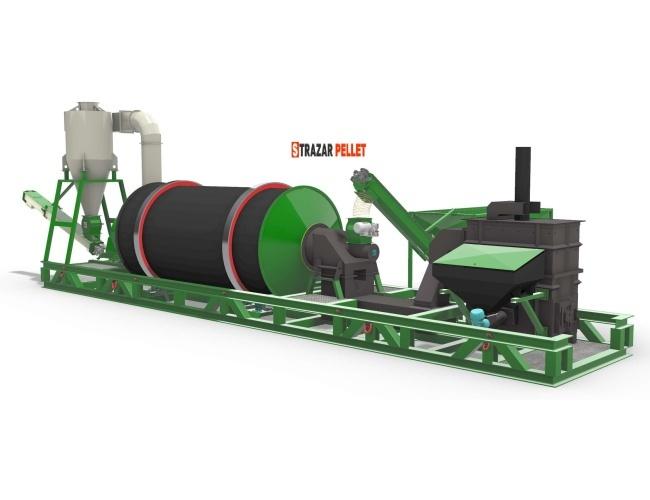

Mobile version of the rotary dryer
