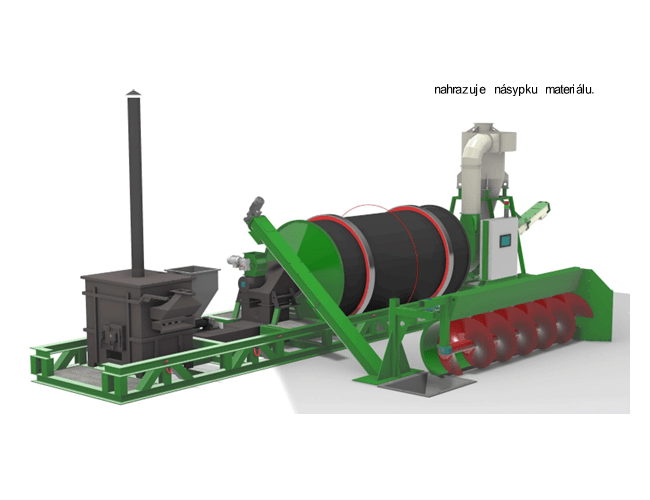

Rotary dryer SPB5-AGRO used for drying cereals or in the production line of pellets and briquettes from rapeseed straw
Technical specifications:
Productivity for cereals or straw drying: up to 3000 kg/hour depending on the raw material
Raw material moisture at input: up to 24%
Moisture content of the raw material at output: 14%
Heat generator: 400KW
Total installed power: 18 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: mm Width: mm Height: mm
Weight: approximately 5500 kg
Dimensions and level of equipment depending on the warehouse and requirements
Technology used since 2023
Working principle of the dryer:
1. Heat generator - construction made of steel and refractory material resistant to high temperatures
2. Raw material feeding hopper volume - 1.6 - 3 cubic meters with dosing screw into the dryer
3. Rotary tube with a drying chamber
4. Fan, Cyclone with rotary valve and free fall
5. Control panel and automated operation program through Siemens LCD based on the moisture of the raw material

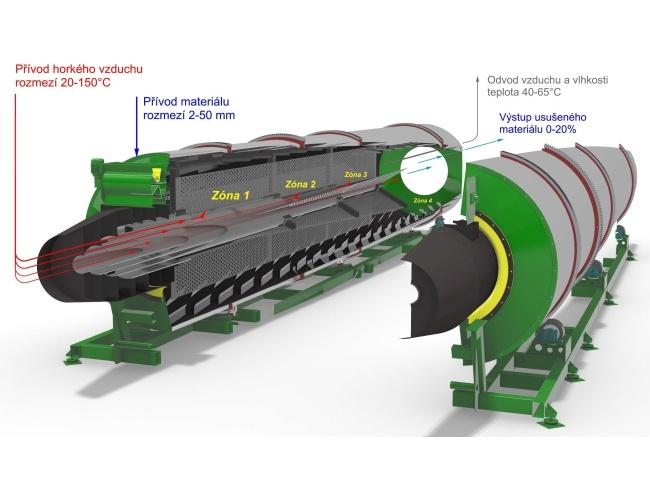

Drying process: The wet raw material passes through the rotary tube composed of a drying chamber with paddles, where it loses moisture by mixing. Then, the dried raw material falls from the cyclone with a rotary valve, and the humid air is ventilated into the atmosphere by the fan.
Optional accessories for SPB5-AGRO rotary dryer:
Internet remote control connection
Humidity sensors in the input and output flow
Mobile version of the rotary dryer
