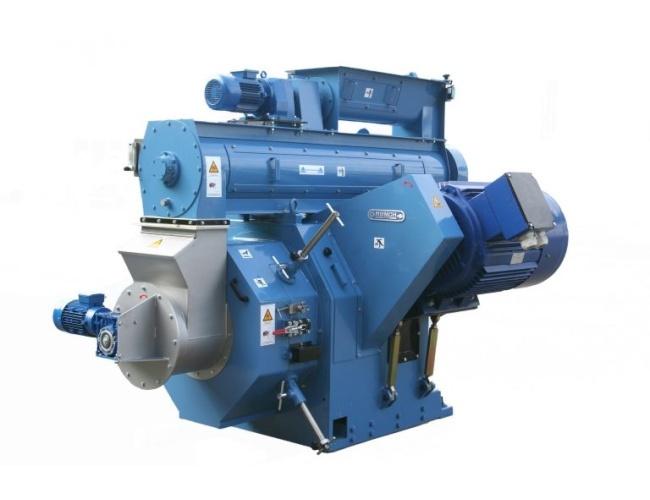

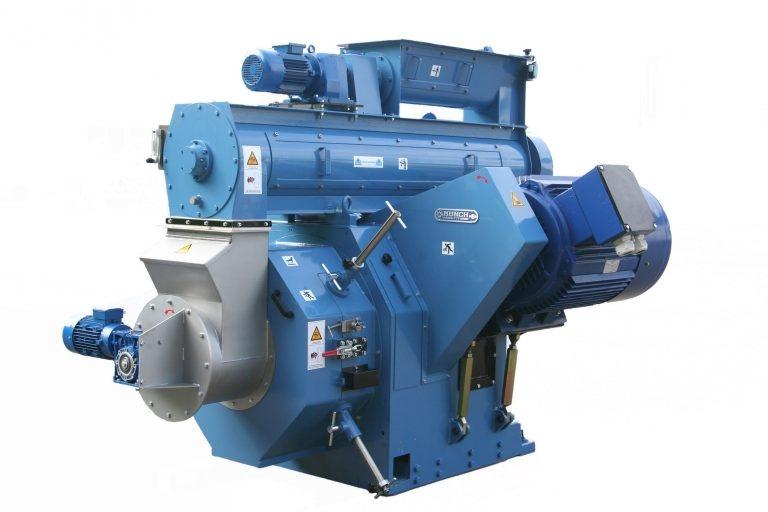

Pellet Press MÜNCH-Edelstahl GmbH Germany model: RMP-420
Granulator MUENCH-Edelstahl GmbH Germany model: RMP-420
Pelletizing biomass pellets up to 1500 kg/hour
Pellet diameter: 4-8 mm
Experience: 40 years
Warranty: 12 months
Pellet Press Germany model: RMP-420
Technical specifications:
Productivity up to: 1500 kg/hour depending on the raw material:
RMP-420 up to 1500 kg/hour, Main motor 2 X 45/55 kW
Inner ring die diameter: 420 mm
Pellet diameter: 4-8 mm
Pellet length depending on the cutter: 15-60 mm
Main electric motor 2 X 45/55 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: 2600 mm
Width: 2150 mm
Height: 2150 mm
Weight: 3000 kg
Raw material moisture content: 12-14-16% - moisture affects pellet quality and productivity
Raw material size: 3-5 mm
Pellet density at the granulator's output up to 1250 kg/m3
Bulk density in Big-Bags up to 700 kg/m3
Types of raw material: wood chips, cereal straw, alfalfa, feed, and other biomass waste.
Each raw material has different taper and dimensions for the ring die.


Fully equipped wood chips pellet press RMP-420 consists of:
Pellet press RMP-420
Controlled raw material feeding screw with frequency converter
Conditioner with raw material humidification system
Automated greasing system for the axis and rollers - Total Ceran XM460/XM720 grease
Rollers with temperature sensor

Additional accessories for wood chips pellet press RMP-420 at an additional cost:
Automated control panel with LCD and soft-starter, internet connection, LG, Schneider, Eaton components
Air compressor, Steam generator
Rollers, Ring dies for pellets with diameters of 6-14mm - Munch

Our experience in selling complete pelletizing lines and biomass briquette production equipment started in 2010 when we acquired a straw briquette manufacturing line from the manufacturer "Briquetting Technology". This line has a production capacity of 2,500 tons of briquettes per year, making us a straw briquette producer. Throughout our activity, we have become the exclusive dealer of "Briquetting Technology" series PellTech and BriqTech in Europe. We have successfully implemented over 130 projects, including complete biomass briquetting lines, straw briquetting lines, and wood pelletizing lines. Read more...
