Pellet Press RMP-350 MÜNCH-Edelstahl GmbH Germany
Pellet Press RMP-350 MÜNCH-Edelstahl GmbH GermanyMÜNCH-Edelstahl GmbH Germany
Pellet Press RMP-350 MÜNCH-Edelstahl GmbH Germany

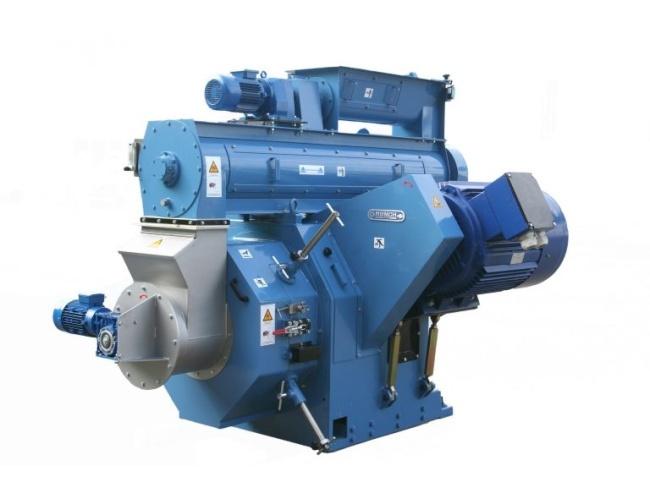

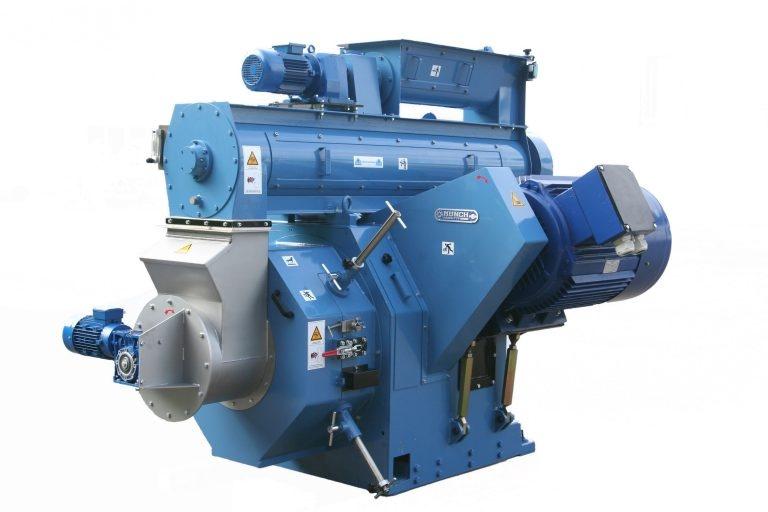

Pellet Press MÜNCH-Edelstahl GmbH Germany model: RMP-350
Granulator MUENCH-Edelstahl GmbH Germany model: RMP-350
Biomass Pelletizing: up to 500-800 kg/hour
Pellet diameter: 4-8 mm
40 years of experience. 12-month warranty.

Pellet Press Germany model: RMP-350
Technical specifications:
Productivity: up to 500-800 kg/hour depending on the raw material:
RMP-350 up to 500-800 kg/hour
Main motor: 2 X 30/37 kW
Inner ring die diameter: 350 mm
Pellet diameter - granules: 4 - 8 mm
Pellet length depending on the cutter: 15 - 60 mm
Main electric motor: 2 X 30/37 kW
Three-phase power supply - 400V, coil voltage 24V/230V within +/- 5%, frequency 50 Hz
Length: 2100 mm
Width: 1710 mm
Height: 1730 mm
Weight: 2000 kg
Raw material moisture content: 12 - 14 - 16% - moisture affects pellet quality and productivity
Raw material size: 3 - 5 mm
Pellet density at the outlet of the granulator: up to 1250 kg/m3
Bulk density in Big Bags: up to 700 kg/m3
Types of raw materials: wood shavings, cereal straw, alfalfa, feed, and other biomass waste
Each raw material has different tapering and sizes for the ring die.
Pellet press for sawdust or straw RMP-350, fully equipped, consists of:
Pellet Press RMP-350
Controlled raw material feeding screw with frequency converter
Conditioner with raw material humidification system
Automated lubrication system for axis and rollers - Total Ceran XM460/XM720 Grease
Rollers with temperature sensor
Additional accessories for Pellet Press for vegetable and forestry waste RMP-350
Automated control panel with LCD and soft starter, internet connection, LG, Schneider, Eaton components
Air compressor, Steam generator
Rollers, Ring dies for pellets 6-14mm - Munch
