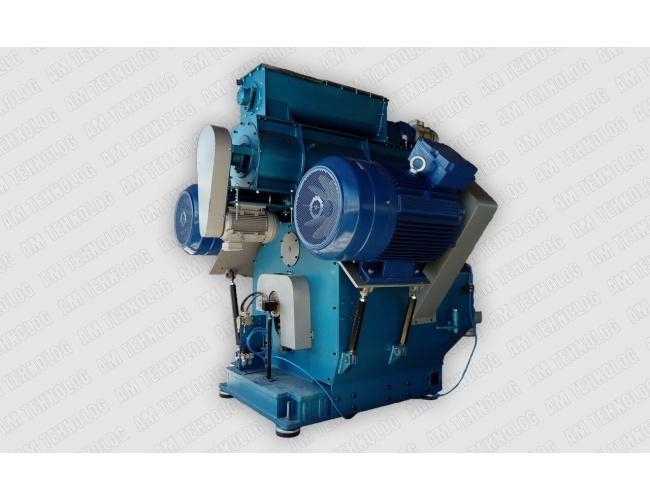

Pellet Press - Granulator AMP-520
Technical Specifications:
Pellet production capacity: up to 1500-2000 kg/hour depending on the raw material
Ring die
Pellet diameter - granules: 6-14 mm
Pellet length: 15-60 mm
Main Motor - 2 X 55 kW / 2 X 75 kW
Dosing Motor - 2 X 3 kW
Total installed power - 130 kW / 150 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: 5550 mm
Width: 3100 mm
Height: 6500/4500 mm
Weight: 7500 kg
Raw material moisture content: 10-12-14% - moisture affects pellet quality and productivity
Raw material size: 3-5 mm
Pellet density at the granulator outlet: up to 1250 kg/m3
Bulk density in Big-Bags: up to 700 kg/m3
Types of raw material: wood chips, cereal straw, alfalfa, feed, and other biomass waste.
Each raw material has different taper and dimensions for the ring die.
Pellet Press AMP-520V consists of:
- Pellet Press AMP-520V
- Raw material humidification system
- Automated lubrication system - recommended to use Total Ceran XM460 Grease
- Control panel with LCD
- Electric panel
- Technology used since 2022
Optional accessories for Pellet Press AMP-520V (at an additional cost)
Raw material homogenization hopper V-5.5 m3
Pellet conveyor belt
Cooler
Blower
Sieve, dedusting sieve
Compressed air compressor, Steam generator
Rollers, Ring dies for pellets 6-14mm - Germany (GRAF, SALMATEC), Hungary, Italy
Consumables
Soft Starter, Reactive power compensation panel
Aerodynamic dryer, Rotary dryer
Forest waste shredding system, Straw bale shredding system
Pellet bagging (automated, semi-automated)
