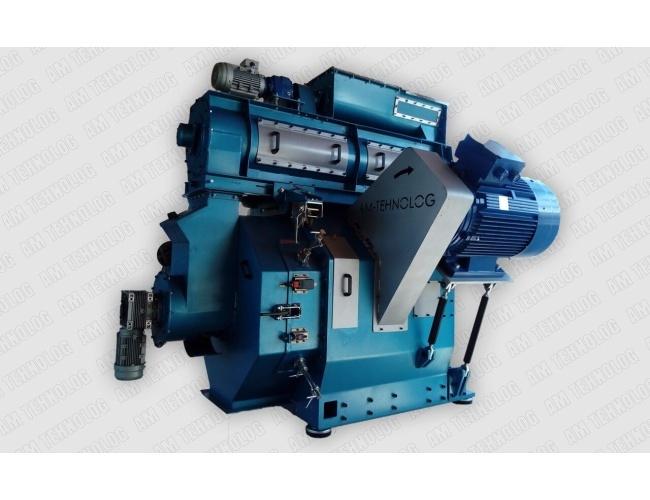

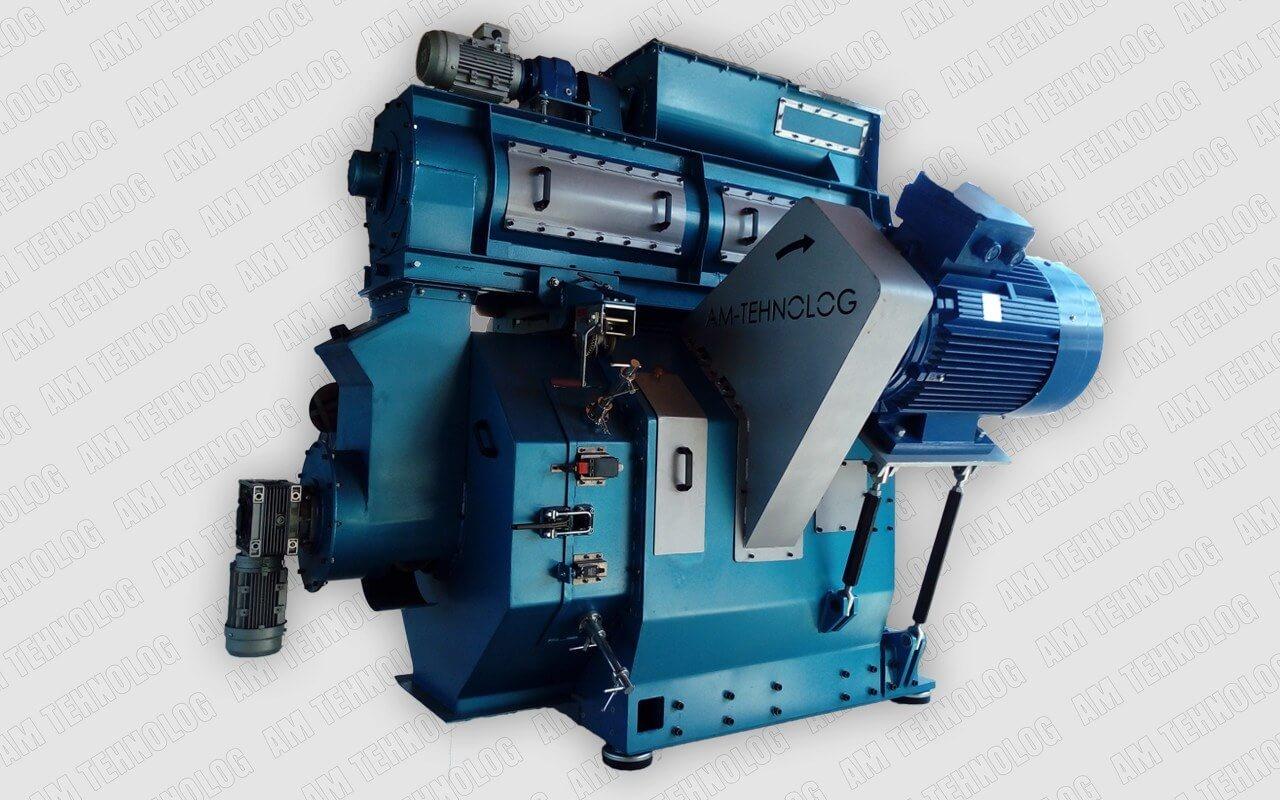

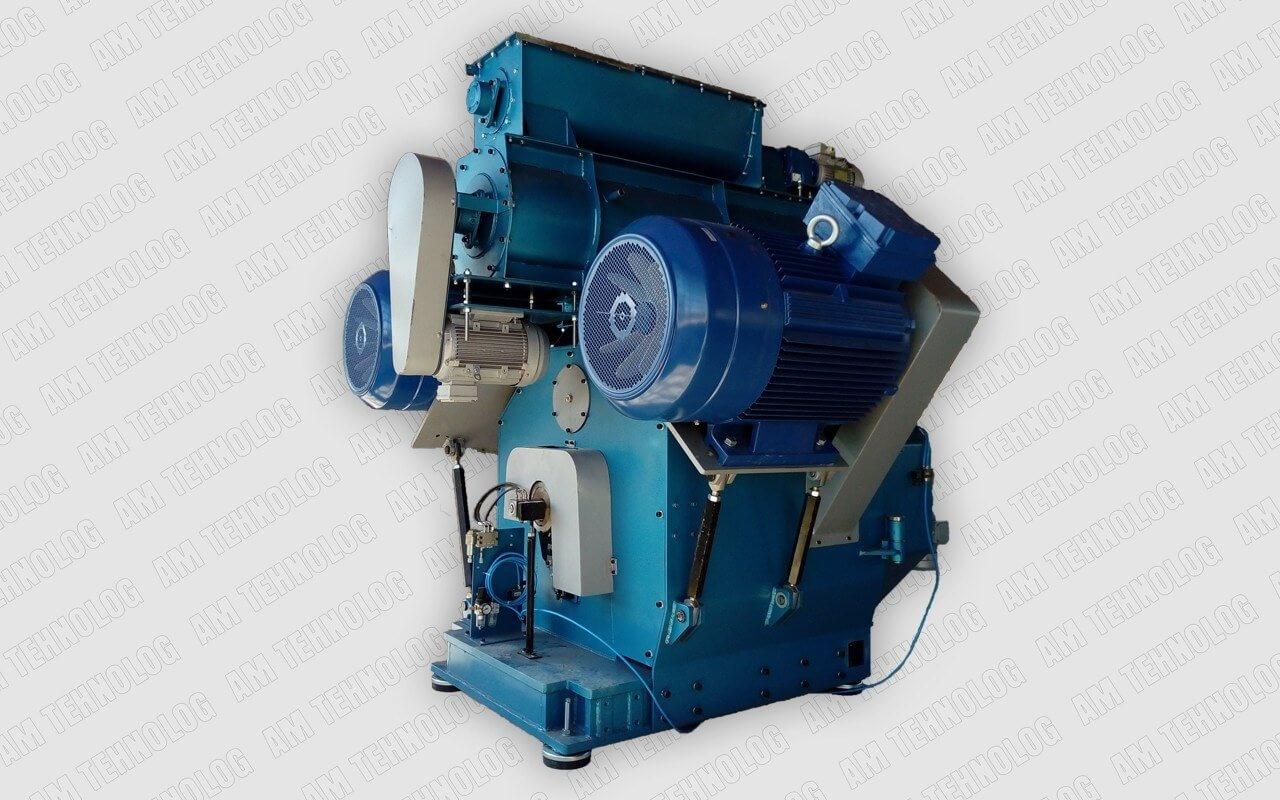

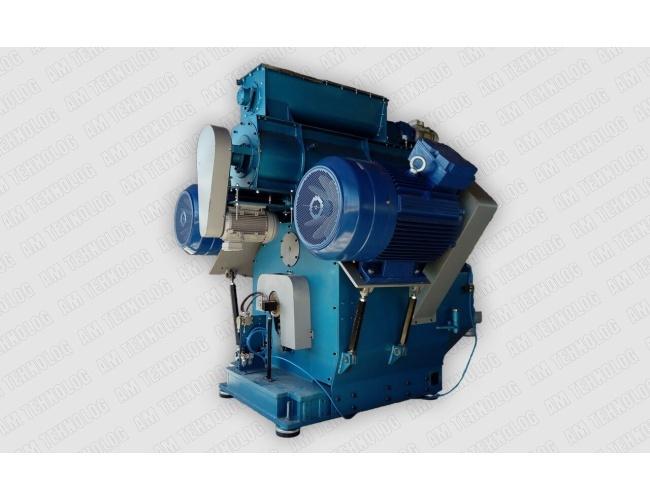

Pellet Press - Granulator AMP-420V
Pellet Press - Granulator AMP-420VPellet Press - Granulator AMP-420V
Pellet Press - Granulator AMP-420V

Biomass pelletizing up to 700-1200 kg/hour
Pellet diameter: 6-14 mm
Over 10 years of experience
12-month warranty

Pellet Press - Granulator AMP-420V
Technical Specifications:
Pellet productivity up to: 700 - 1200 kg/hour depending on the raw material
Ring die
Pellet diameter - granules: 6 - 14 mm
Pellet length: 15 - 60 mm
Main Motor - 2 X 45 kW / 2 X 55 kW
Dosing Motor - 2 X 3 kW
Total installed power - 110 kW / 130 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: 5550 mm
Width: 3100 mm
Height: 6500/4500 mm
Weight: 7500 kg
Raw material moisture content: 10 - 12 - 14% - moisture affects pellet quality and productivity
Raw material size: 3 - 5 mm
Pellet density at the granulator outlet up to 1250 kg/m3
Bulk density in Big-Bags up to 700 kg/m3
Types of raw material: wood shavings, cereal straw, alfalfa, feed, and other biomass waste.
Each raw material has different taper and dimensions on the ring die.
Pellet Press AMP-420V consists of:
  • Pellet Press AMP-420V
  • Raw material humidification system
  • Automated lubrication system - recommended using Total Ceran XM460 Grease
  • LCD control panel
  • Electric panel
  • Technology used since 2022
Optional accessories for Pellet Press AMP-420V
Raw material homogenization hopper V-5.5 m3
Pellet conveyor belt
Sieve, dust collector
Air compressor, Steam generator
Rolls, Ring dies for 6-14 mm pellets - Germany (GRAF, SALMATEC), Hungary, Italy
Soft Starter, Power factor correction panel
Aerodynamic dryer, Rotary dryer
Forest residue shredding system, Straw bale shredding system
Automated or semi-automated pellet bagging

Our experience in selling complete pelletizing lines and biomass briquette production equipment started in 2010 when we acquired a straw briquette manufacturing line from the manufacturer "Briquetting Technology". This line has a production capacity of 2,500 tons of briquettes per year, making us a straw briquette producer. Throughout our activity, we have become the exclusive dealer of "Briquetting Technology" series PellTech and BriqTech in Europe. We have successfully implemented over 130 projects, including complete biomass briquetting lines, straw briquetting lines, and wood pelletizing lines. Read more...
