Pellet Press - Granulator AMP-304V
Pellet Press - Granulator AMP-304V

Biomass pelletizing up to 400-700 kg/hour
Pellet diameter: 4-14 mm
Over 10 years of experience
12-month warranty

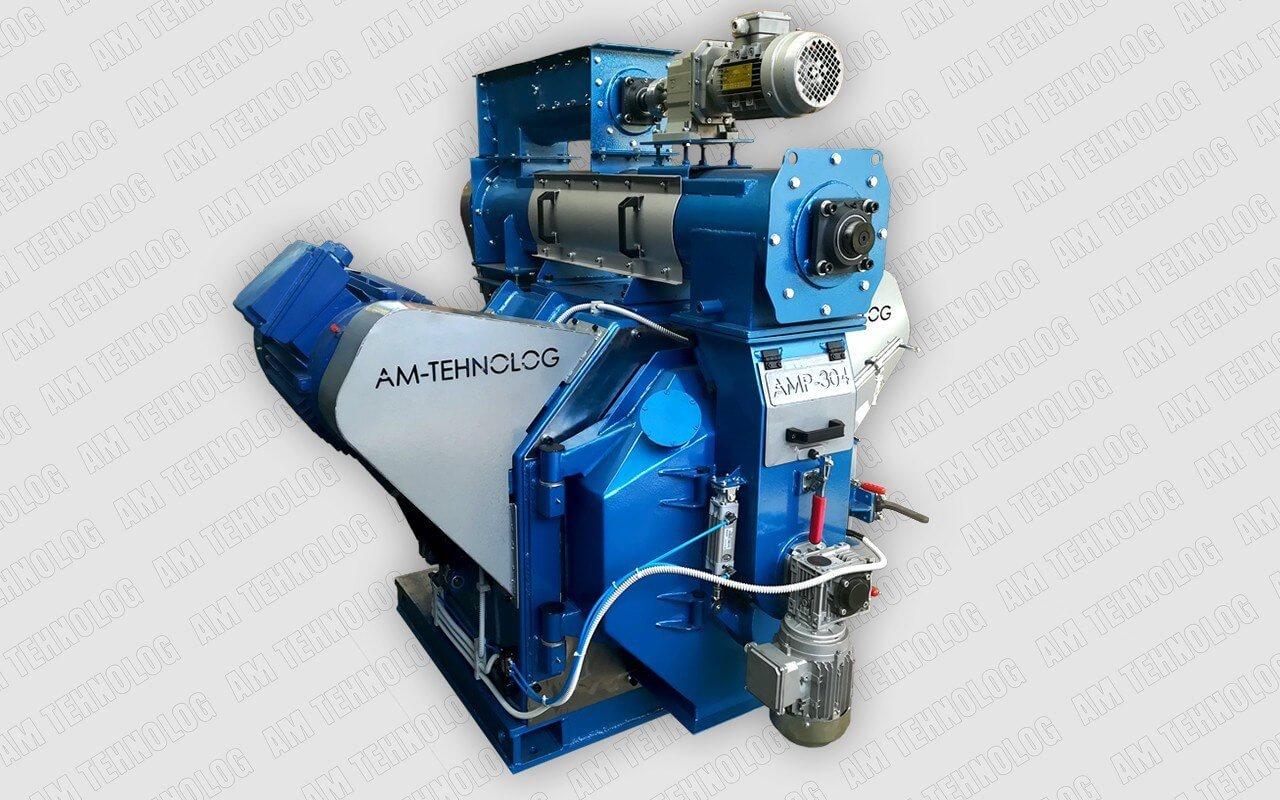

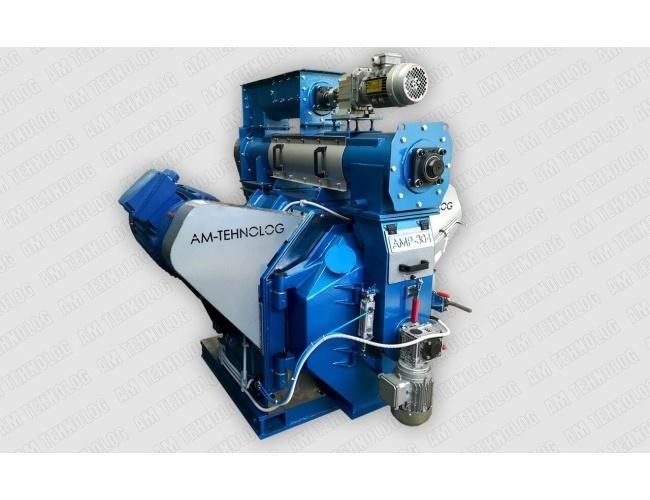

Pellet Press - Granulator AMP-304V
Technical specifications:
Productivity up to: 400 - 700 kg/hour depending on the raw material
Ring die
Pellet - granule diameter: 6 - 14 mm
Pellet length: 15 - 60 mm
Main Motor - 2 X 30kW
Dosing Motor - 2 X 3 kW
Total installed power - 85 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: 5550 mm
Width: 3100 mm
Height: 6500/4500 mm
Weight: 5000 kg
Raw material moisture content: 10 - 12 - 14% - moisture affects pellet quality and productivity
Raw material size: 3 - 5 mm
Pellet density at granulator output up to 1250 kg/m3
Bulk density in Big-Bags up to 700 kg/m3
Types of raw material: wood chips, cereal straw, alfalfa, feed and other biomass waste.
Each raw material has different tapering and dimensions for the ring die.
Pellet Press AMP-304V consists of:
  • Pellet Press AMP-304V
  • Raw material humidification system
  • Automated lubrication system - recommended use of Total Ceran XM460 Grease
  • Control panel with LCD
  • Electric panel
  • Technology used since 2022
Optional accessories for Pellet Press AMP-304V (additional cost)
Raw material homogenization hopper V-5.5 cubic meters
Pellet conveyor belt
Sieve, dedusting screener
Air compressor, Steam generator
Rollers, Ring dies for pellets 6-14mm - Germany (GRAF, SALMATEC), Hungary, Italy
Soft Starter, Reactive power compensation panel
Aerodynamic dryer, Rotary dryer
Forestry waste shredding complex, Straw bale shredding complex
Automated, semi-automated pellet bagging

Our experience in selling complete pelletizing lines and biomass briquette production equipment started in 2010 when we acquired a straw briquette manufacturing line from the manufacturer "Briquetting Technology". This line has a production capacity of 2,500 tons of briquettes per year, making us a straw briquette producer. Throughout our activity, we have become the exclusive dealer of "Briquetting Technology" series PellTech and BriqTech in Europe. We have successfully implemented over 130 projects, including complete biomass briquetting lines, straw briquetting lines, and wood pelletizing lines. Read more...
